Intelligent Height Pre-Warning System
Background
Viaducts, tunnels, bridges and culverts have become important parts of urban transportation. However, with the increase in the number of trucks and large vehicles, accidents sometimes occur in which over-height vehicles are damaged by collision, bringing serious threats to traffic safety. In order to prevent such accidents, the intelligent height Pre-Warning System has emerged to secure urban traffic safety.
LiDAR Solutions
Intelligent Height Pre-Warning System is a set of intelligent system integrating real-time monitoring, data analysis and pre-warning. The system mainly utilizes the High Precision and real-time monitoring capability of LiDAR to monitor the height of vehicles, which are passing over viaducts or tunnels. When the over-height vehicles approach the height pre-warning road pole, the system can quickly respond to the over-height vehicles that are about to pass the height limit section with alarm prompts to avoid accidents.
LiDAR Selection
The detection equipment of system needs to be assembled at a height of 5m. The range of the 2D LiDAR LakiBeam is 0~50m, which satisfying clients' needs for ranging. And compared to 3D LiDAR, LakiBeam has low power consumption and can be powered directly by the solar panel assembled on the road rod.
LiDAR Selection
The detection equipment of system needs to be assembled at a height of 5m. The range of the 2D LiDAR LakiBeam is 0~50m, which satisfying clients' needs for ranging. And compared to 3D LiDAR, LakiBeam has low power consumption and can be powered directly by the solar panel assembled on the road rod.

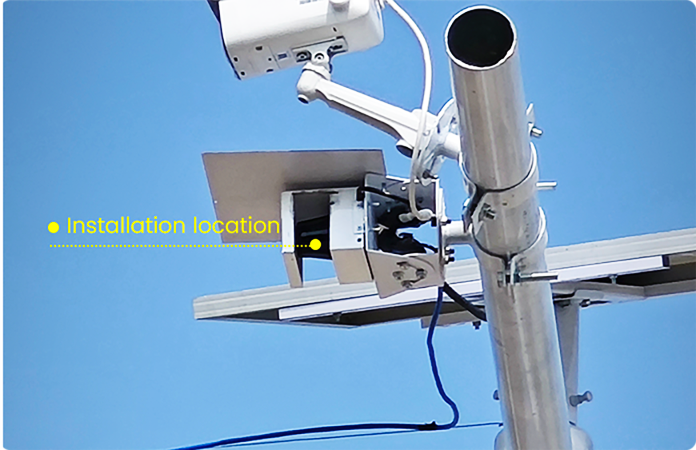

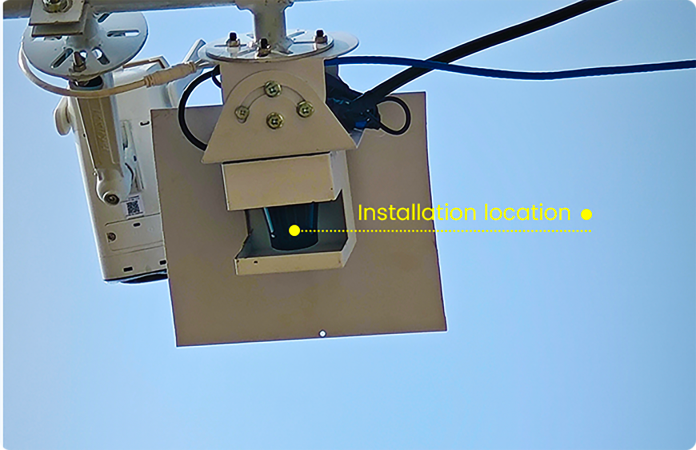

Equipment Assembly

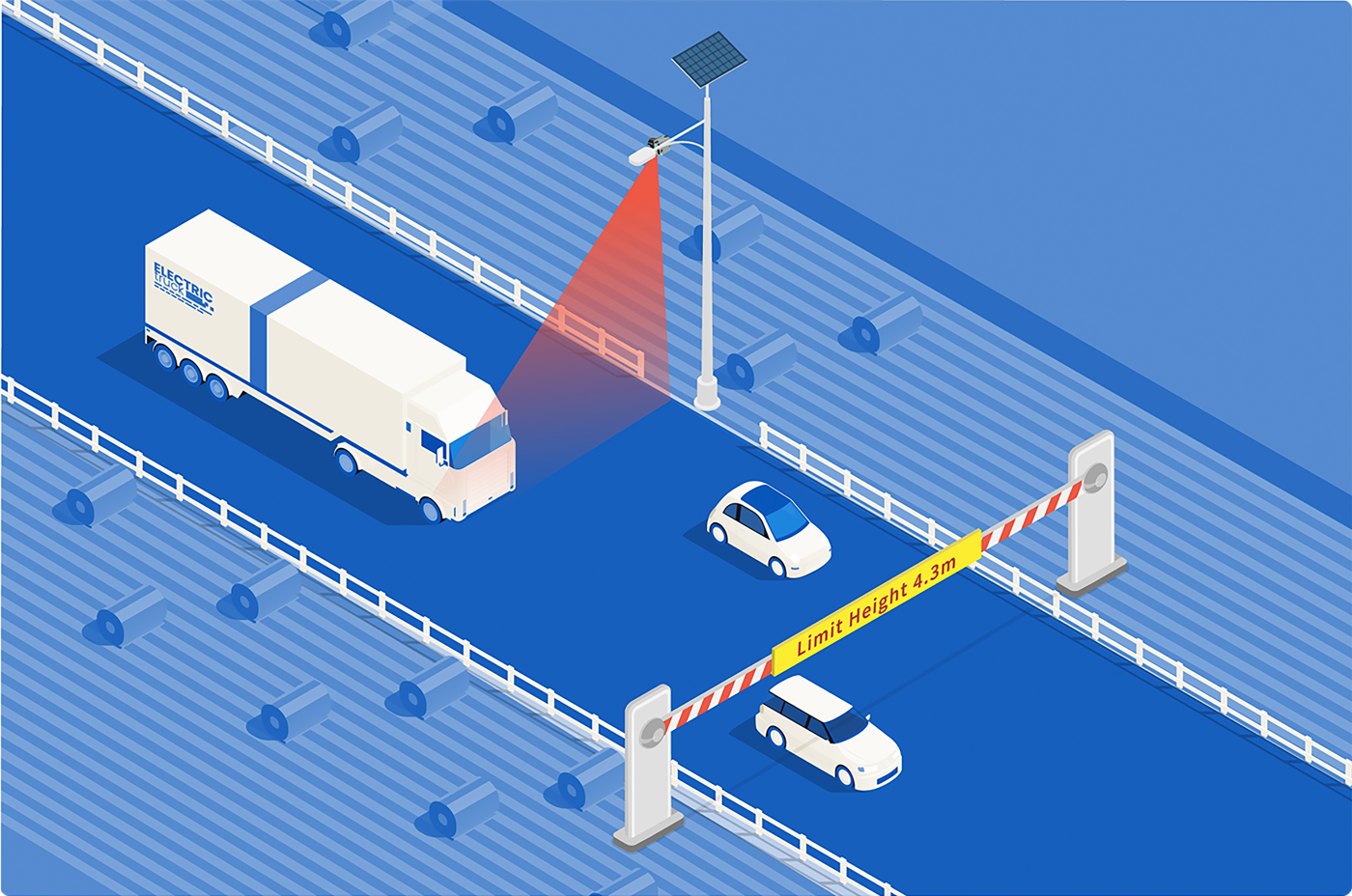

The LiDAR scanner is assembled vertically on the solar monitoring rod, which is set at 3m in front of a height-limiting gantry. When a vehicle passes by, the LiDAR calculates the height of the vehicle, and when the height of the vehicle exceeds the limit height, the system carries out an alarm prompt.
Solution Advantages
Superior Immunity of Ambient Light
Ambient Light Immunity up to 100,000 Lux, Adaptable to outdoor environments with complex reflectivity.
Low Power Consumption
Total power consumption less than 2W, powered by solar energy, enough to support the operation of the equipment.
High-Performance and Cost-Effective
Height measurement program can be deployed directly into the SoC of LiDAR, saving hardware costs.
Recommended Scenarios
