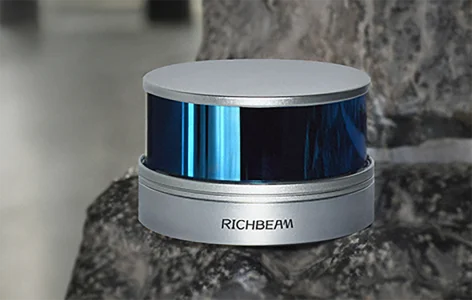

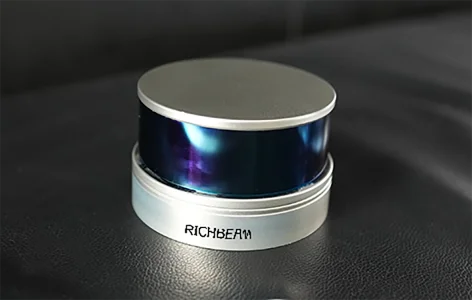

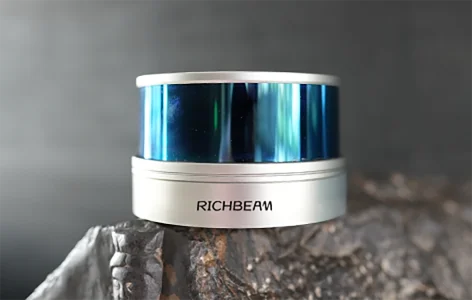

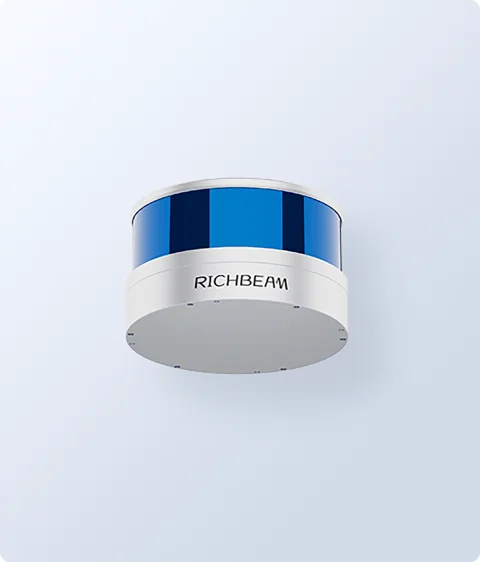

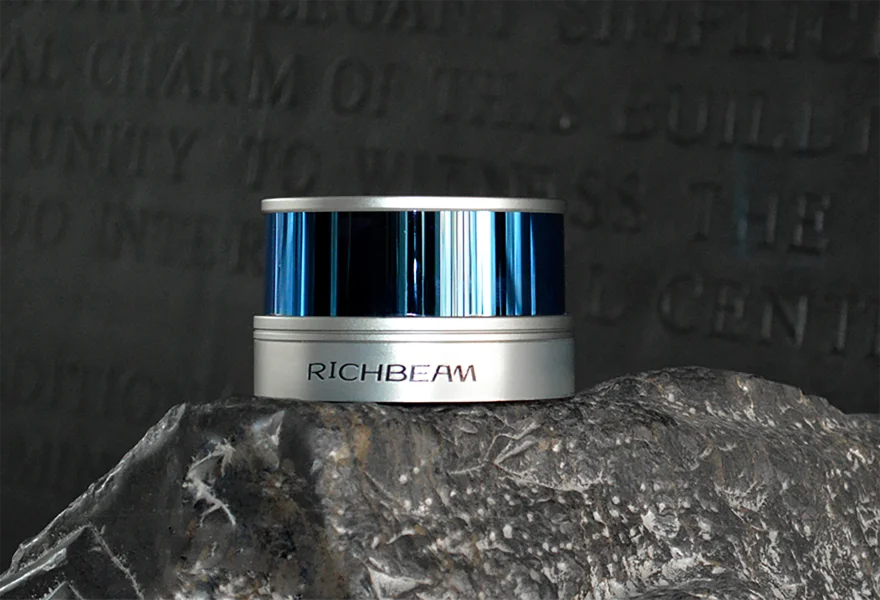

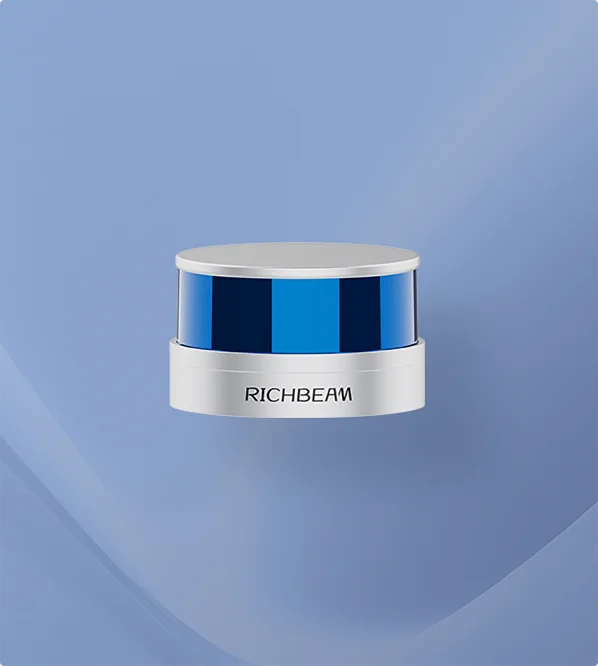

MetaBeam Series
L4 Long Range 3D LiDAR Scanner
200 m
Max Range
360°
Horizontal FOV
2 cm
Accuracy
At A Glance
MetaBeam series is a high-precision 3D LiDAR sensor developed for autonomous driving, robotics and other scenarios. MetaBeam series is based on new generation of self-developed optical chip and hardware design of platform architecture, which is capable of realizing high-density and long-range pointcloud.
Application Scenarios
CleaningInspectsSecurityRobobusAutonomous DeliveryMining...

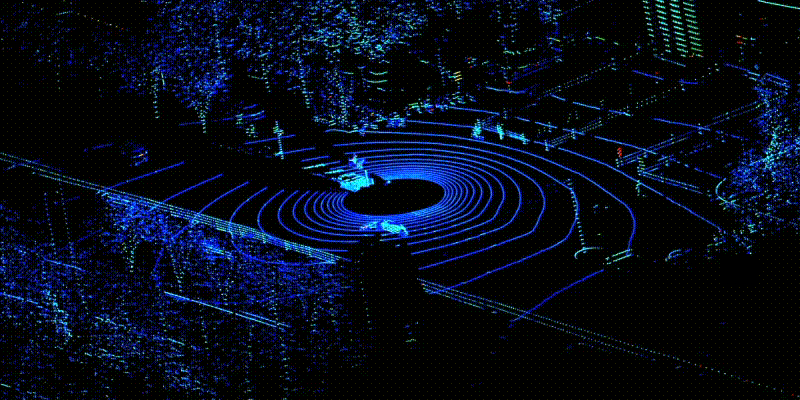

Long Range, High Point Rate with Powerful Built-in Hardware

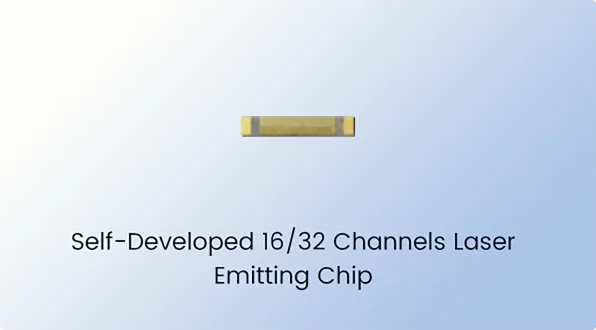

Manufactured With Chips

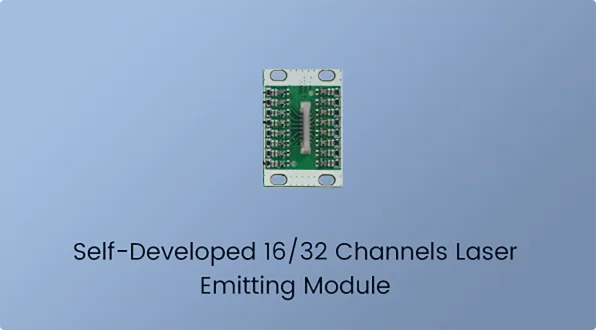

Metabeam series is equipped with a self-developed multi-channel laser emitting, detecting chip and a built-in hardware algorithm to build high-performance and high-stability products from the base.
Minimum Range of Zero/360° HFOV/Class 1 Eye Safe
Superior Immunity of Ambient Light
Due to the improved optical performance and optimized algorithms, MetaBeam series shows excellent adaptability in harsh environments such as glass and interference rejection ability outdoor. Ambient Light Immunity up to 100,000 Lux.

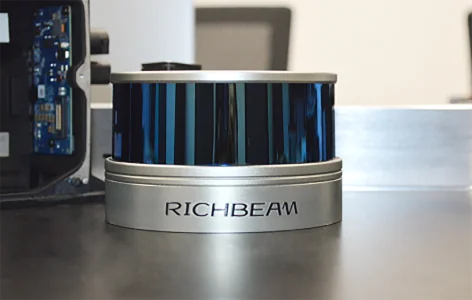

High Reliability, Mass Production
Richbeam's manufacturing center has a building area of 32292ft² based in Suzhou, equipped with advanced production facilities and automated production line, ensuring quickly respond to delivery from customization to mass production.
Core Specifications
MetaBeam 16 Scanning Method
Mechanical Rotation
Number of Channels
16
Range
80m(10%)120m(70%)
Scan Frequency
10Hz20Hz
Vertical FOV
30°（-16° to +14°）
Vertical Resolution
2°
Accuracy
±5cm (0.05-1m)±2cm (1-120m)
Horizontal FOV
360°
Horizontal Resolution
0.24° 10Hz0.48° 20Hz
MetaBeam 32Scanning Method
Mechanical Rotation
Number of Channels
32
Range
80m(10%)120m(70%)
Scan Frequency
10Hz20Hz
Vertical FOV
31°（-16° to +15°）
Vertical Resolution
1°
Accuracy
±5cm (0.05-1m)±2cm (1-120m)
Horizontal FOV
360°
Horizontal Resolution
0.24° 5Hz0.48° 10Hz
MetaBeam 16SScanning Method
Mechanical Rotation
Number of Channels
16
Range
40m(10%)80m(70%)
Scan Frequency
5Hz10Hz15Hz20Hz
Vertical FOV
30°（-16° to +14°）
Vertical Resolution
2°
Accuracy
±5cm (0.05-1m)±2cm (1-80m)
Horizontal FOV
360°
Horizontal Resolution
0.08° 5Hz0.16° 5Hz0.24° 15Hz0.32° 20Hz
