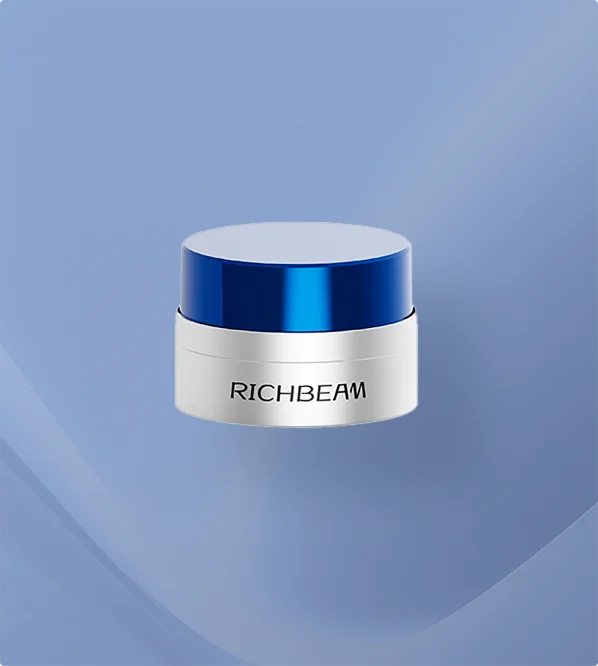

MetaBeam S Series
L4 All-Around Performance, Long Range 3D LiDAR Scanner
100 m
Max Range
360°
Horizontal FOV
2 cm
Accuracy
At A Glance
MetaBeam S series is integrated Multi-lines 3D LiDAR sensor developed for robotics, surveying and other scenarios. MetaBeam series is based on new generation of self-developed integrated optical emitting, detecting chip and hardware design of platform architecture, more stable and cost-effective.
Application Scenarios
CleaningInspectsSecurityRobobusAutonomous DeliveryMining...
High Sample Capability of 360,000 pts/s Point Rate

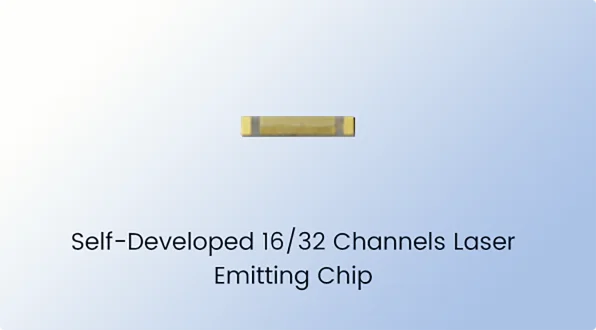

Manufactured With Chips

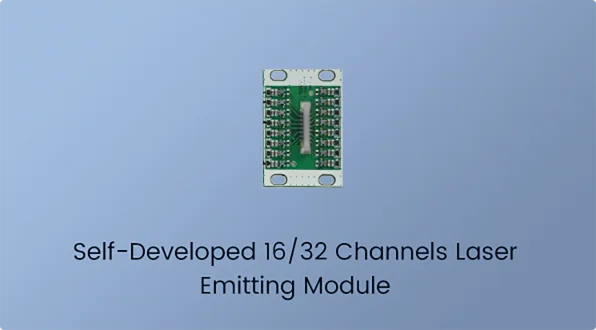

MetaBeam S series Use integrated laser emitting and detecting modules, which integrate mutile channels on a chip, enhances product's performance and life and reduces system power consumption.
Minimum Range of Zero/360° HFOV/Class 1 Eye Safe
Efficient Mass Production Capacity
Replace manual debugging and calibration, standardized production, production speed increases at least 9 times; Product consistency, stability is much higher than manual manufacturing, the product angle inaccuracy between 2 channels reduced about 66%.
High Reliability, Mass Production
Richbeam's manufacturing center has a building area of 32292ft² based in Suzhou, equipped with advanced production facilities and automated production line, ensuring quickly respond to delivery from customization to mass production.
Core Specifications
MetaBeam 16 Scanning Method
Mechanical Rotation
Number of Channels
16
Range
80m(10%)120m(70%)
Scan Frequency
10Hz20Hz
Vertical FOV
30°（-16° to +14°）
Vertical Resolution
2°
Accuracy
±5cm (0.05-1m)±2cm (1-120m)
Horizontal FOV
360°
Horizontal Resolution
0.24° 10Hz0.48° 20Hz
MetaBeam 32Scanning Method
Mechanical Rotation
Number of Channels
32
Range
80m(10%)120m(70%)
Scan Frequency
10Hz20Hz
Vertical FOV
31°（-16° to +15°）
Vertical Resolution
1°
Accuracy
±5cm (0.05-1m)±2cm (1-120m)
Horizontal FOV
360°
Horizontal Resolution
0.24° 5Hz0.48° 10Hz
MetaBeam 16SScanning Method
Mechanical Rotation
Number of Channels
16
Range
40m(10%)80m(70%)
Scan Frequency
5Hz10Hz15Hz20Hz
Vertical FOV
30°（-16° to +14°）
Vertical Resolution
2°
Accuracy
±5cm (0.05-1m)±2cm (1-80m)
Horizontal FOV
360°
Horizontal Resolution
0.08° 5Hz0.16° 5Hz0.24° 15Hz0.32° 20Hz
