LoraBeam
High-Performance 2D LiDAR Scanner
50 m
Max Range
270°
Horizontal FOV
2 cm
Accuracy
LoraBeam series is the advanced generation of 2D dTOF LiDAR released by Richbeam, which achieves blind range of zero and centimeter-level precision with new architecture. It is compact, has lower power consumption, is a absolute more cost-effective LiDAR among all similar types.

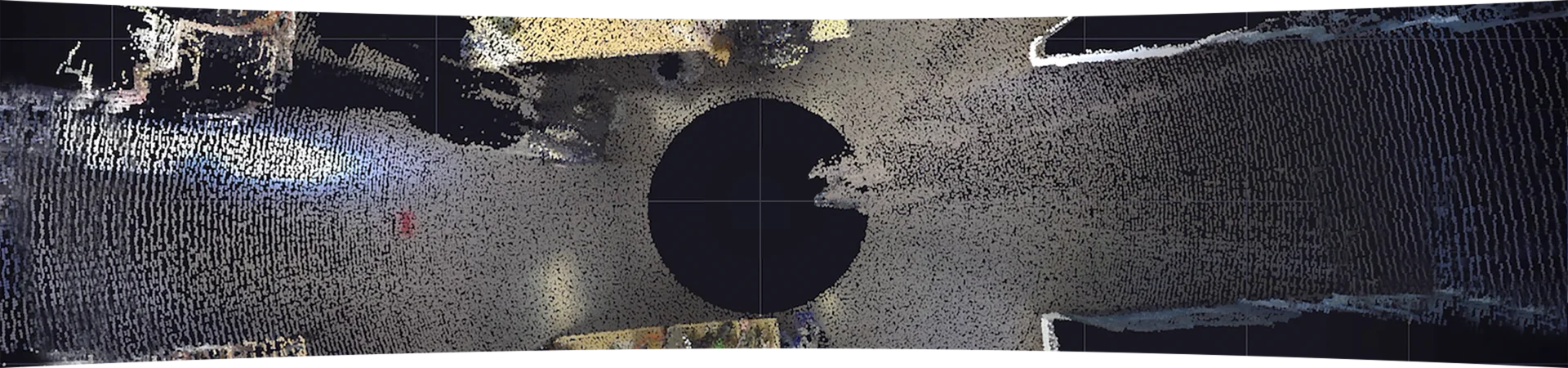

Real-time Pointcloud
Lorabeam range up to 50m and still has high performance in vibration and shock, which meets the commercial and industrial scenarios of large-area SLAM and obstacle avoidance.
Superior Precision, Long Range
With dTOF technology, Lorabeam series can precisely detect the object around, Range detection up to 50m.
Perception with More Than One Dimension
One For Real
With dTOF technology, Lorabeam series can precisely detect the environment around, acquire the object‘s distance and azimuth precisely.
One For Intrinsic
Lorabeam's built-in hardware accurately outputs information about the RSSI of the detected object, helping the device to distinguish between different objects.
Upgraded Chip
Built-in FPGA and SoC, support the processing of more data, provide more data support for the detection and decision.
45,000 pts/s Point Rate
High-Stability, High-Quality
Vibration and shock tests based on international standards, also covered more than 50 reliability tests, such as different light intensities, temperatures, humidity, reflectivity, dust, fog and water, the performance during test is still superior.
High Reliability, Mass Production

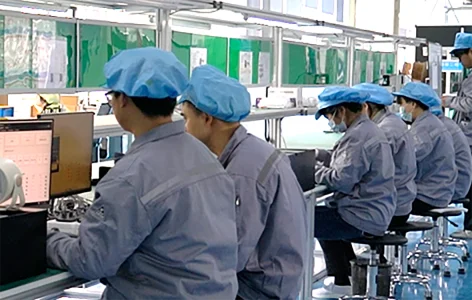

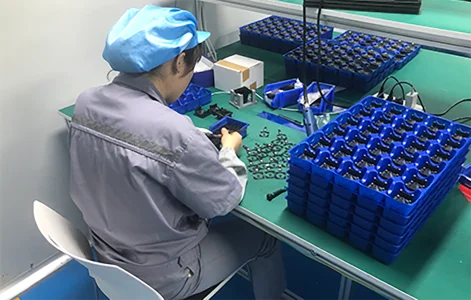

Richbeam's manufacturing center has a building area of 32292ft² based in Suzhou, equipped with advanced production facilities and automated production line, ensuring quickly respond to delivery from customization to mass production.
Core Specifications
LoraBeam 1Scanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz25Hz30Hz
Ambient Light Immunity
100000Lux
Point Rate
45KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥50m (90% Reflectivity)≥20m (10% Reflectivity)
Horizontal Resolution
0.08°0.12°0.16°0.2°0.24°
LoraBeam 1SScanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz
Ambient Light Immunity
100000Lux
Point Rate
15KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥25m (70% Reflectivity)≥10m (10% Reflectivity)
Horizontal Resolution
0.24°0.36°0.48°
LoraBeam 1LScanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz25Hz30Hz
Ambient Light Immunity
100000Lux
Point Rate
45KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥40m (70% Reflectivity)≥20m (10% Reflectivity)
Horizontal Resolution
0.08°0.12°0.16°0.2°0.24°
