KoraBeam
Easy-Handle 2D LiDAR Scanner
50 m
Max Range
270°
Horizontal FOV
2 cm
Accuracy
KoraBeam series is the latest generation of obstacle avoidance lidar released by RichBeam. The detection range is 0-50m, meeting the needs of commercial scenarios such as Robots, AGV, and Unmanned Driving, as well as industrial scenarios such as safety protection and early warning, dangerous area monitoring, and driving area detection. Different from other single-line lidars, the KoraBeam series can output switching information through I/O, making it easy for users to get started quickly.through I/O, which is easy for clients to get started quickly.
Real-time Pointcloud
Users can set different shape of fields according to the actual environment, and the superior data point rate and pointcloud performance can provide reliable data support for obstacle avoidance.

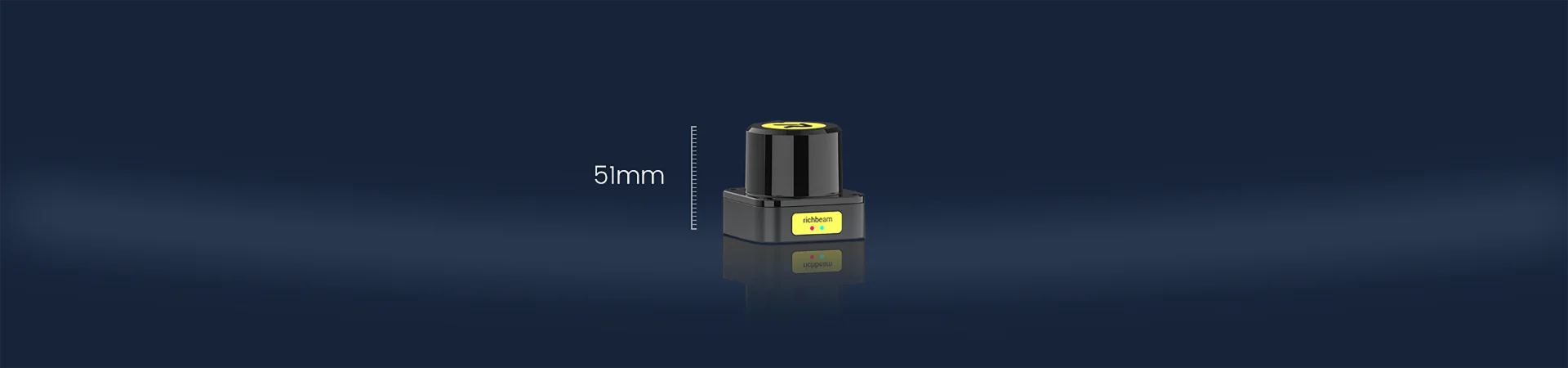

Compact and Lightweight
Compact and with special designed, Korabeam is 45% smaller than Lakibeam series and weighs only 85g, easy for users to assemble.
Powerful Software and Hardware
Software
Support RS485-MODBUS protocol, Users can adjust LiDAR's parameters through PLC; Support for Bluetooth/Wireless connection, users do not need to be wired to directly configure LiDAR's obstacle avoidance field.
Hardware
Compact and lightweight, but Korabeam still maintains strong detection capability and powerful data sampling ability to capture rich object details.

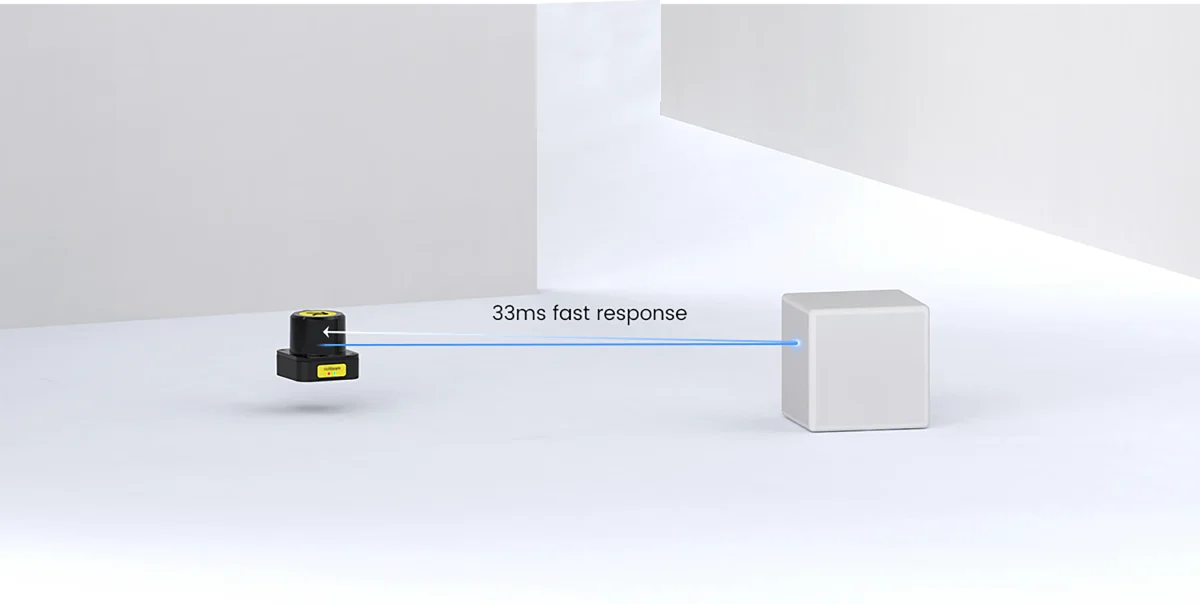

Quick Response
With a maximum scanning Frequency of 30Hz, it is able for Korabeam to provide rapid Response on obstacles in the field within 33ms.

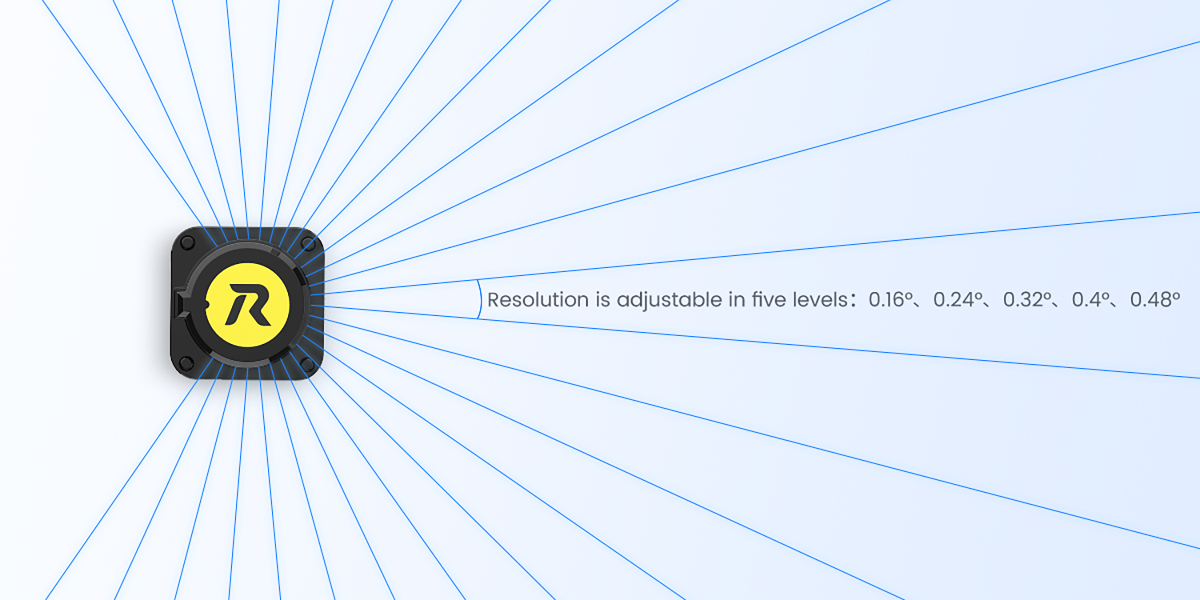

Ajustable Resolution
No False Alarm
Korabeam has built-in self-developed filtering algorithms to minimize false alarms caused by light, weather, temperature and other environmental factors.
High Reliability, Mass Production
Richbeam's manufacturing center has a building area of 32292ft² based in Suzhou, equipped with advanced production facilities and automated production line, ensuring quickly respond to delivery from customization to mass production.
Core Specifications
KoraBeam 1Scanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz25Hz30Hz
Ambient Light Immunity
100000Lux
Point Rate
22.5KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥20m (70% Reflectivity)≥8m (10% Reflectivity)≥3m(1.8% Reflectivity)
Horizontal Resolution
0.16°0.24°0.32°0.4°0.48°
KoraBeam 1SScanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz25Hz30Hz
Ambient Light Immunity
100000Lux
Point Rate
22.5KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥10m (70% Reflectivity)≥4m (10% Reflectivity)≥2m(1.8% Reflectivity)
Horizontal Resolution
0.16°0.24°0.32°0.4°0.48°
KoraBeam 1LScanning Method
1-D Rotating Mirror
Ranging Principle
dTOF
Accuracy
±2cm
Scan Frequency
10Hz15Hz20Hz25Hz30Hz
Ambient Light Immunity
100000Lux
Point Rate
22.5KHz
Ingress Protection
IP66、IP67(Optional)
Horizontal FOV
270°
Range
≥40m (70% Reflectivity)≥20m (10% Reflectivity)≥4m(1.8% Reflectivity)
Horizontal Resolution
0.16°0.24°0.32°0.4°0.48°
