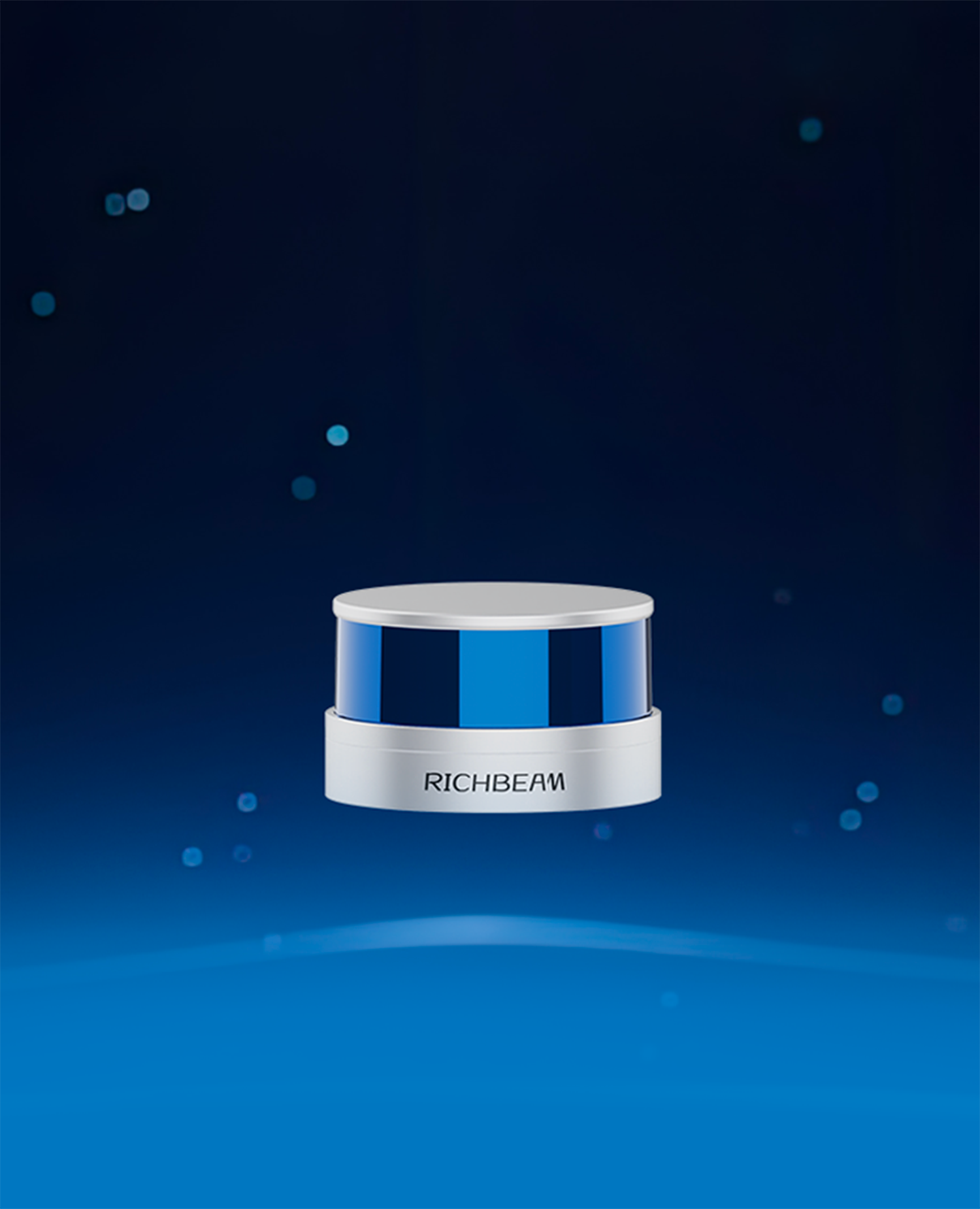

Automotive-grade multi-line LiDAR with 64-beam resolution, engineered for L4 autonomy. Richbeam's proprietary optical chip achieves 2cm precision at 200m range – redefining perception for Autonomous driving, mining haulers, and industrial security robots. With MetaBeam, you can easily obtain on-site data collection and efficiently promote Autonomous driving and industrial measurement projects.

Video

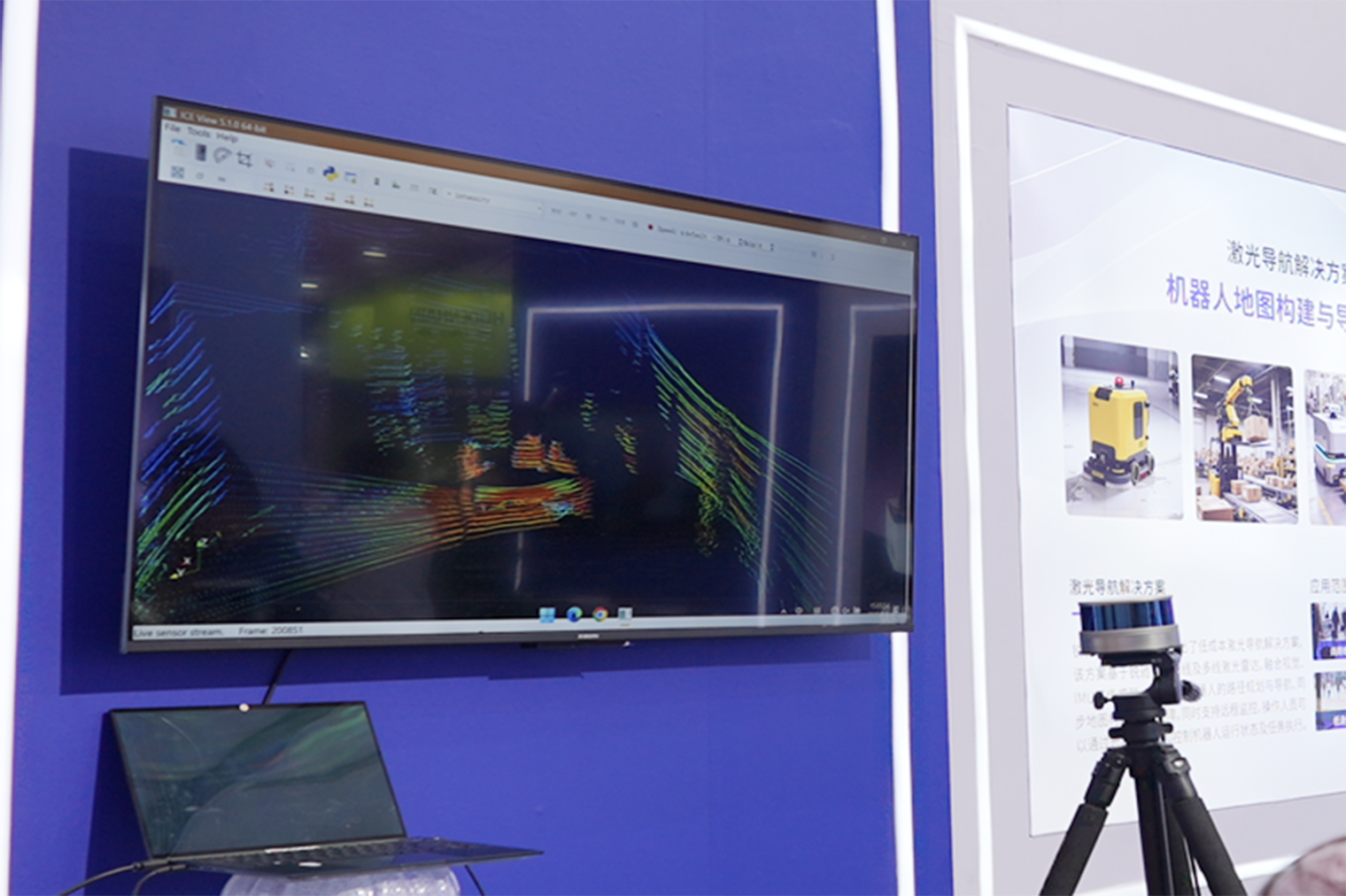

MetaBeam real point cloud effect: clear data and uniform point distribution.

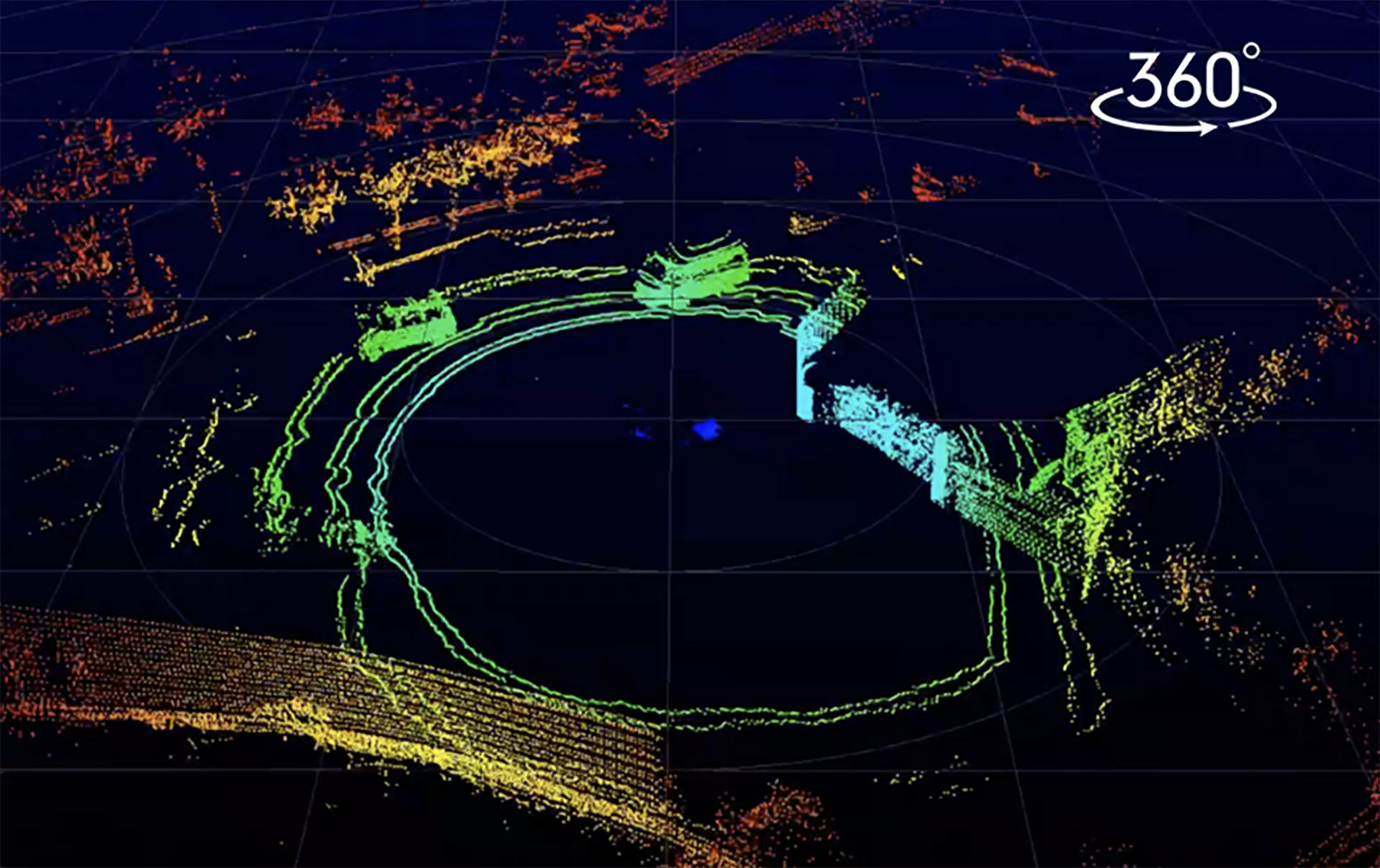

High-resolution 3D LiDAR data

MetaBeam32 captures crisp point clouds at 480K pts/sec, clearly identifying pedestrians, vehicles, and infrastructure within 120m range.

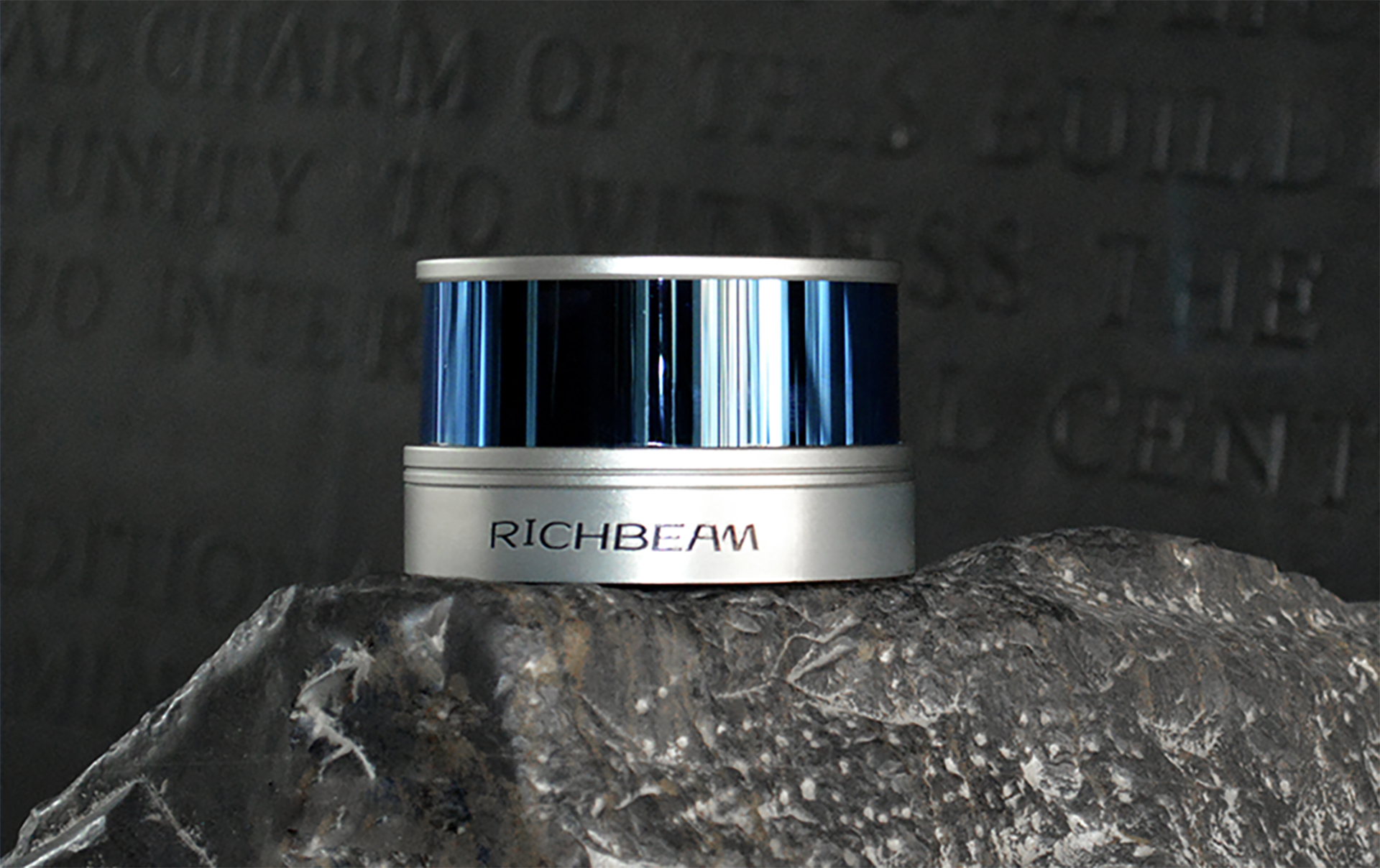

Superior Immunity of Ambient Light

Due to the improved optical performance and optimized algorithms, MetaBeam series shows excellent adaptability in harsh environments such as glass and interference rejection ability outdoor. Ambient Light Immunity up to 100,000 Lux.

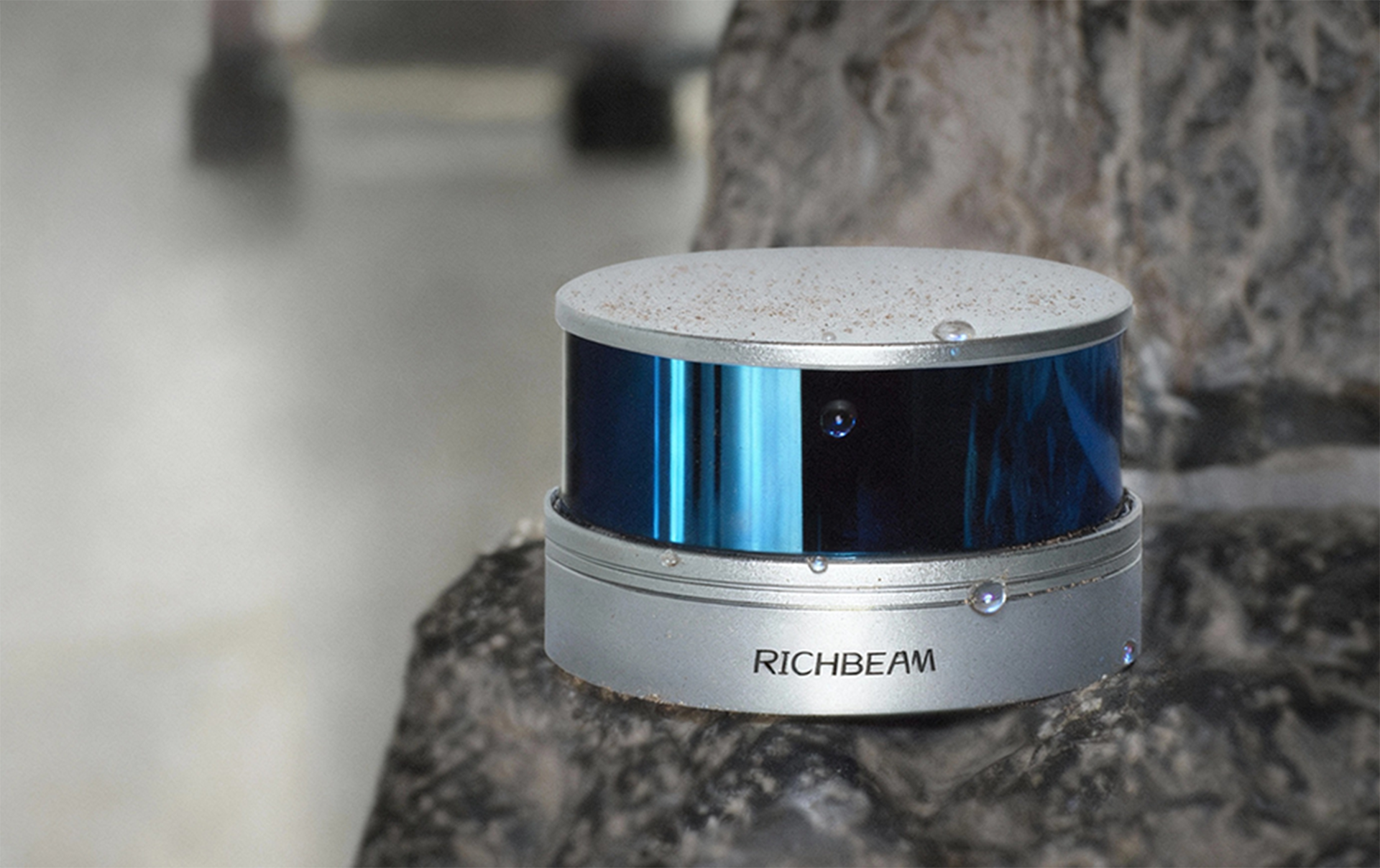

Reliable detection even in harsh environments

MetaBeam sensors are IP67 rated, rugged and low maintenance, suitable for both indoor and outdoor applications.

Proprietary Tx/Rx chip design

MetaBeam integrates Richbeam's proprietary Tx/Rx chipsets with multi-channel ASIC design, enabling breakthrough signal integrity.

Core Specifications

规格参数
Lines
Range
Range Accuracy
Horizontal FOV
Horizontal Resolution
Vertical FOV
Vertical Resolution
Scan Frequency
Data Sample Rate
Data Transmission
Data Output
Time Synchronization
PTP Clock Accuracy
PTP Clock Drift
Laser Class
Wavelength
Operating Voltage
Power Consumption
Operating Temperature
Storage Temperature
Environmental Protection
Dimension
Weight

MetaBeam16 New	MetaBeam32 New	MetaBeam64 New
16	32	64
≥120m（70%reflectivity） ≥80m（10%reflectivity）	≥120m（70%reflectivity） ≥80m（10%reflectivity）	≥260m（70%reflectivity） ≥120m（10%reflectivity）
±5cm（0.05-1m） ±2cm（1-120m）	±5cm（0.05-1m） ±2cm（1-120m）	±5cm（0.05-1m） ±2cm（1-260m）
360°	360°	360°
0.24°，0.48°	0.24°，0.48°	0.48°，0.96°
30°（-16° to 14°）	31°（-16° to 15°）	31.5°（-15.75° to 15.75°）
2°	1°	0.5°
10Hz，20Hz	10Hz，20Hz	10Hz，20Hz
Single Return：240,000points/s	Single Return：480,000points/s	Single Return：480,000points/s Dual Return：960,000points/s
Ethernet 100Mbps（UDP）	Ethernet 100Mbps（UDP）	Ethernet 100Mbps（UDP）
Distance,Angle,RSSI,Time Stamp	Distance,Angle,RSSI,Time Stamp	Distance,Angle,RSSI,Time Stamp
GPS/PTP	GPS/PTP	GPS/PTP
≤1μs	≤1μs	≤1μs
≤1μ/s	≤1μ/s	≤1μ/s
Class1 Eye Safe	Class1 Eye Safe	Class1 Eye Safe
905nm	905nm	905nm
9V to 36V	9V to 36V	9V to 36V
8W	8W	15W
-25° to 60°	-25° to 60°	-25° to 60°
-40° to 85°	-40° to 85°	-40° to 85°
IP67	IP67	IP67
65mm×65mm×106mm	65mm×65mm×106mm	65mm×65mm×106mm
700g	700g	700g

Software Functions

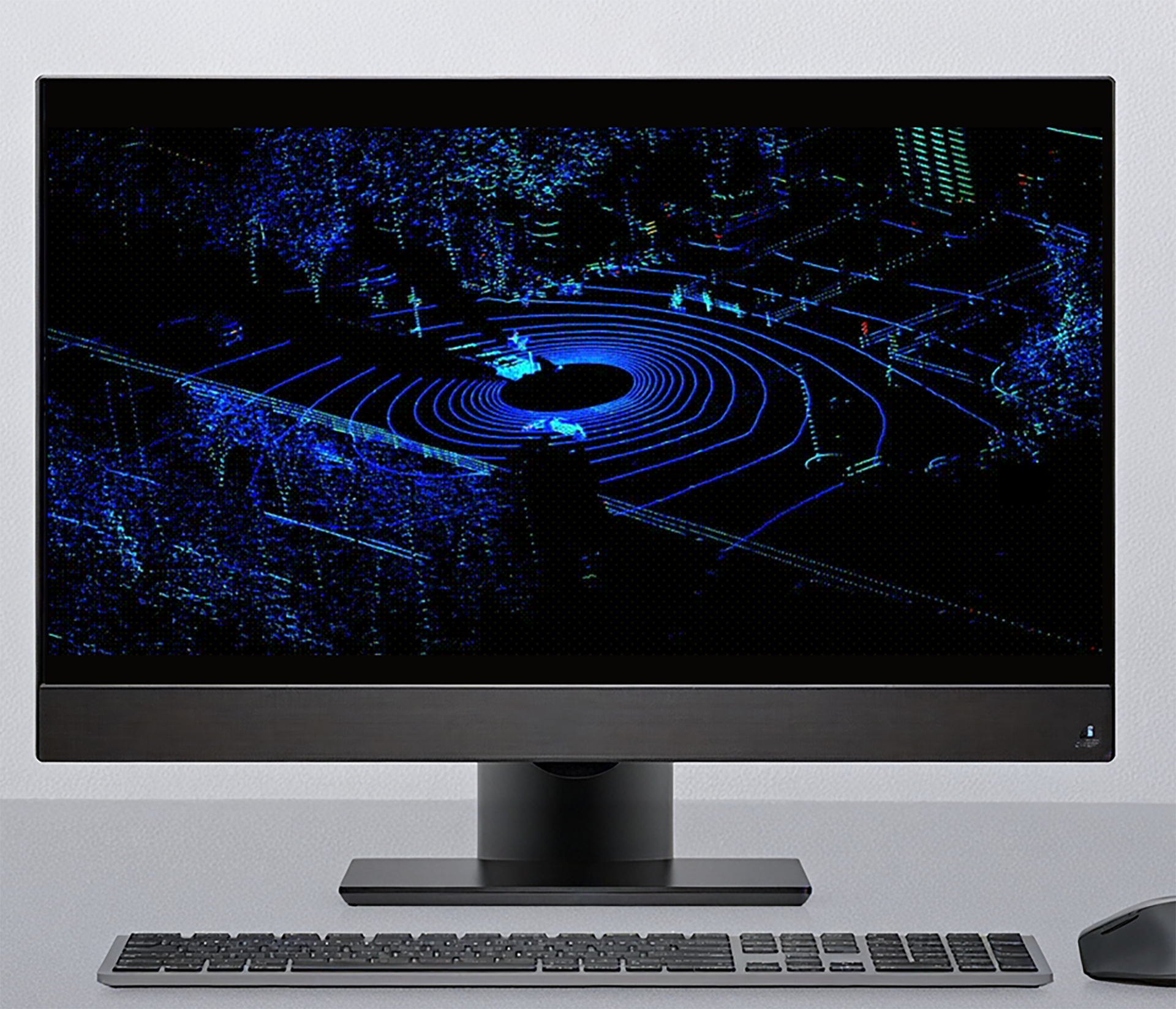

We have designed ICEView point cloud visualization software for the MetaBeam of LiDARs, which can be used to display point cloud data of all LiDAR detectors connected to the computer in real time. With ICEView, users can easily view, record and store point cloud data for later use.

Cases

Truck bulk material volume measurement solution based on Richbeam BeamMaster

The BeamMaster 1 3D scanner helps businesses and universities with inventory management.

LakiBeam Series Helps Capital Normal University PIE Team Soar in Competitions

Recently, Richbeam and the W.PIE Student Innovation Laboratory of Capital Normal University have......

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

Truck bulk material volume measurement solution based on Richbeam BeamMaster

The BeamMaster 1 3D scanner helps businesses and universities with inventory management.

LakiBeam Series Helps Capital Normal University PIE Team Soar in Competitions

Recently, Richbeam and the W.PIE Student Innovation Laboratory of Capital Normal University have......

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

Product Details

Product List

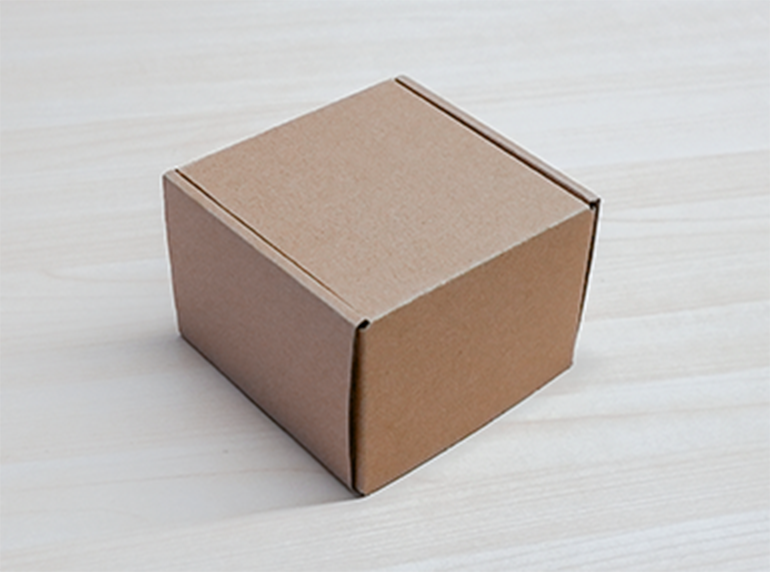

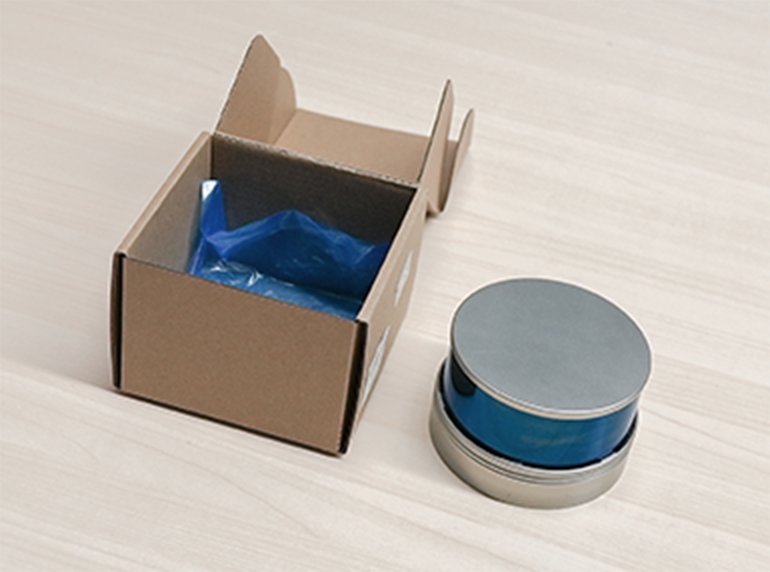

Packaging

Customization

Didn't find a LiDAR that meets your requirements? Let's discuss your problem together. Our professional technical team can provide you with customized services.

Contact Our Experts

FAQ List

Is there any delay after receiving the GPS synchronization signal?

No.

What is the working principle of Richbeam LiDAR?

How do I use multiple LiDAR units?

For more questions, please visit our WIKI link.

All Q&A
