Navigation 2D LiDAR

LoraBeam

Revolutionary industrial design enables 40% smaller size, redefining cost-effectiveness compact laser sensing.

As a new generation product, the LoraBeam single-line dTOF laser LiDAR launched by Richbeam has achieved a double breakthrough in short-distance measurement and centimeter-level accuracy through the technical innovation of a new architecture. Its industrial design has greatly reduced the size and power consumption, and it stands out among similar models with its high cost performance. With LoraBeam, you can easily obtain on-site data collection and efficiently promote robot and industrial measurement projects.

Video

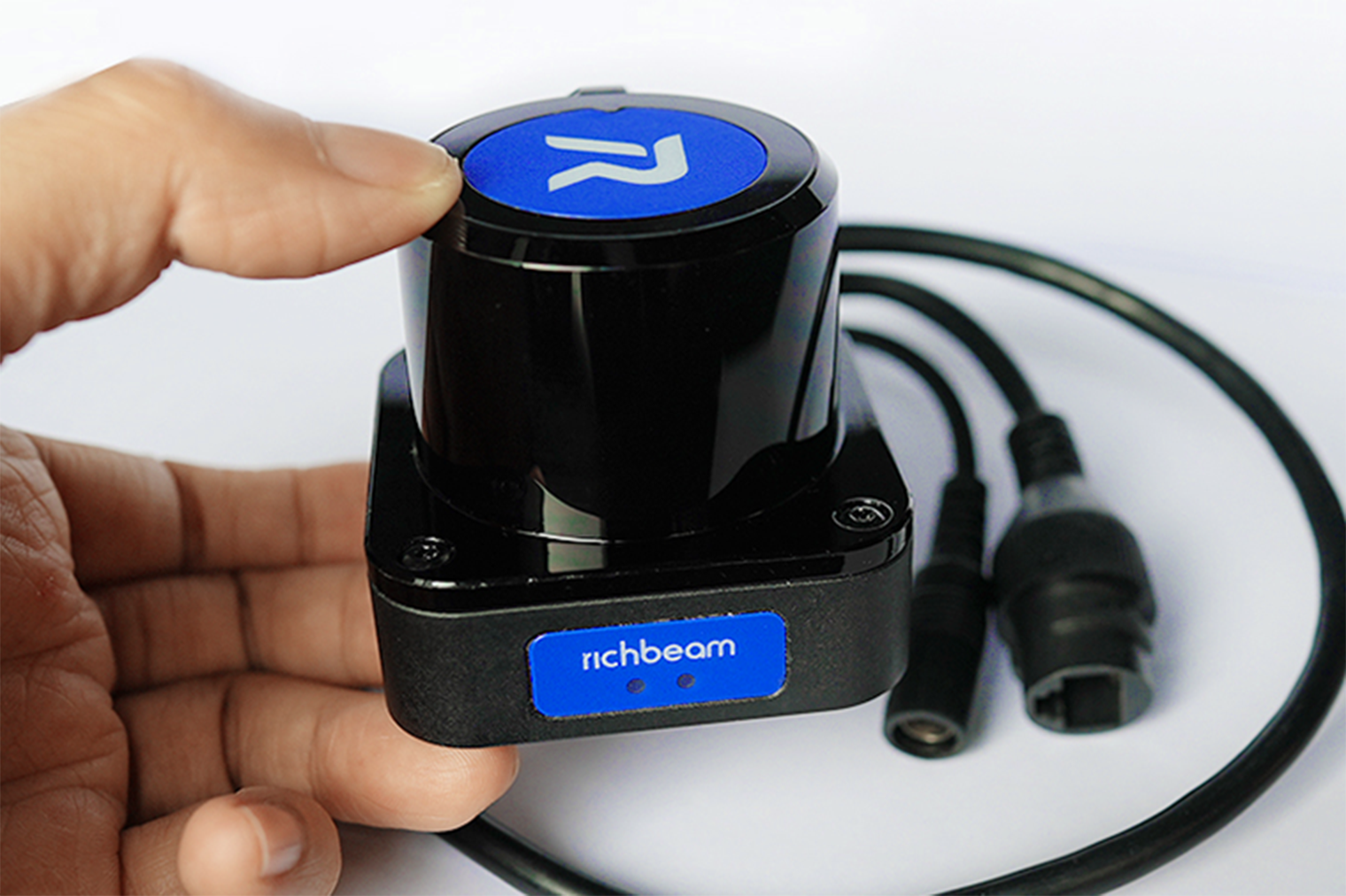

In handheld mode, LoraBeam is not affected by the bumps and slight shaking caused by human movement, and the maximum effective distance is 40m, which meets the needs of robot mapping, industrial measurement, navigation and obstacle avoidance.

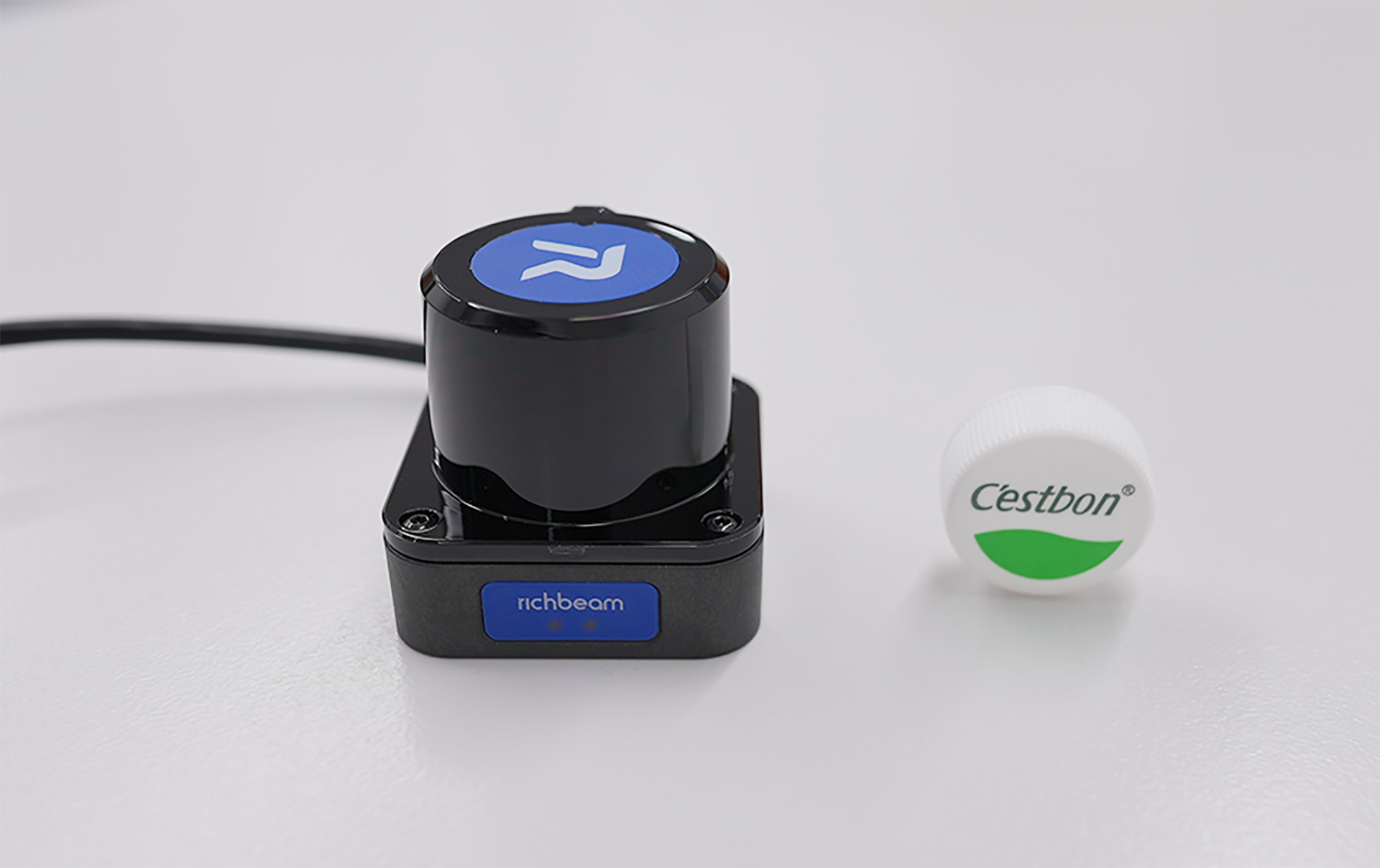

Compact form factor

LoraBeam features a compact design 45% smaller than LakiBeam, weighing just 85g for easy user integration.

Compact form factor

Instant alert and rapid response

It features a maximum 30Hz scan speed, detecting obstacles within 33ms and triggering immediate alarms.

Instant alert and rapid response

Strong computing power

LoraBeam’s FPGA-SoC combo delivers robust computing to process more return data, enabling faster detection decisions.

Strong computing power

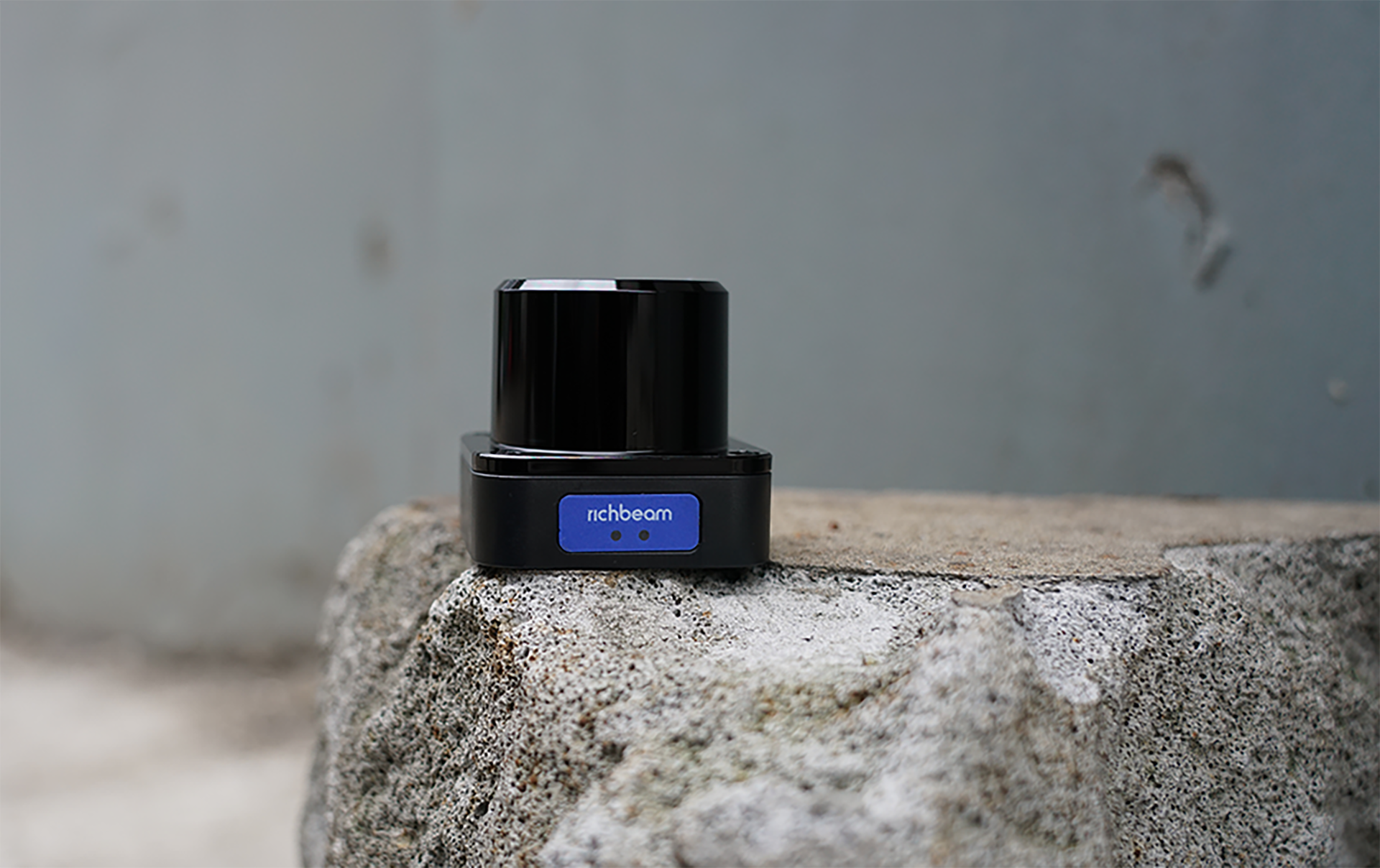

Rugged by Design

1,000+ destructive tests validate rugged impact resistance. Environmental simulations (light, temp, dust, fog) confirm point cloud data excels in edge, texture, and feature accuracy—delivering industry-leading stability.

Rugged by Design

Core Specifications

规格参数
Range
Scanning Principle
Range Principle
Range Accuracy
Horizontal FOV
Horizontal Resolution
Scan Frequency
Data Sample Rate
Data Transmission
Data Output
Laser Class
Wavelength
Operating Voltage
Power Consumption
Resistance to Ambient Light
Operating Temperature
Storage Temperature
Environmental Protection
Dimension
Weight
LoraBeam1S
LoraBeam1
LoraBeam1L
≥15m(70%reflectivity)
≥10m(10%reflectivity)
≥25m(70%reflectivity)
≥15m(10%reflectivity)
≥40m(70%reflectivity)
≥20m(10%reflectivity)
1D Rotating Mirror
1D Rotating Mirror
1D Rotating Mirror
dTOF
dTOF
dTOF
±2cm
±2cm
±2cm
270°
270°
270°
0.24°,0.36°,0.48°
0.8°,0.12°,0.16°,0.2°,0.24°
0.8°,0.12°,0.16°,0.2°,0.24°
10Hz,15Hz,20Hz
10Hz,15Hz,20Hz,25Hz,30Hz
10Hz,15Hz,20Hz,25Hz,30Hz
15KHz
45KHz
45KHz
UART
Ethernet100Mbps(TCP/UDIfreelyconfigurablebyusers)
Ethernet100Mbps(TCP/UDIfreelyconfigurablebyusers)
Distance, Angle, RSSl, Time Stamp
Distance, Angle, RSSl, Time Stamp
Distance, Angle, RSSl, Time Stamp
Class 1 Eye Safe
Class 1 Eye Safe
Class 1 Eye Safe
905nm
905nm
905nm
9V to 36V
9V to 36V
9V to 36V
≤2W
≤2W
≤2W
100000Lux
100000Lux
100000Lux
-25°C to 60°C
-25°C to 60°C
-25°C to 60°C
-40°C to 75°C
-40°C to 75°C
-40°C to 75°C
IP66,IP67(Select)
IP66,IP67(Select)
IP66,IP67(Select)
55mm×55mm×51mm
55mm×55mm×51mm
55mm×55mm×51mm
85g
85g
85g

Software Functions

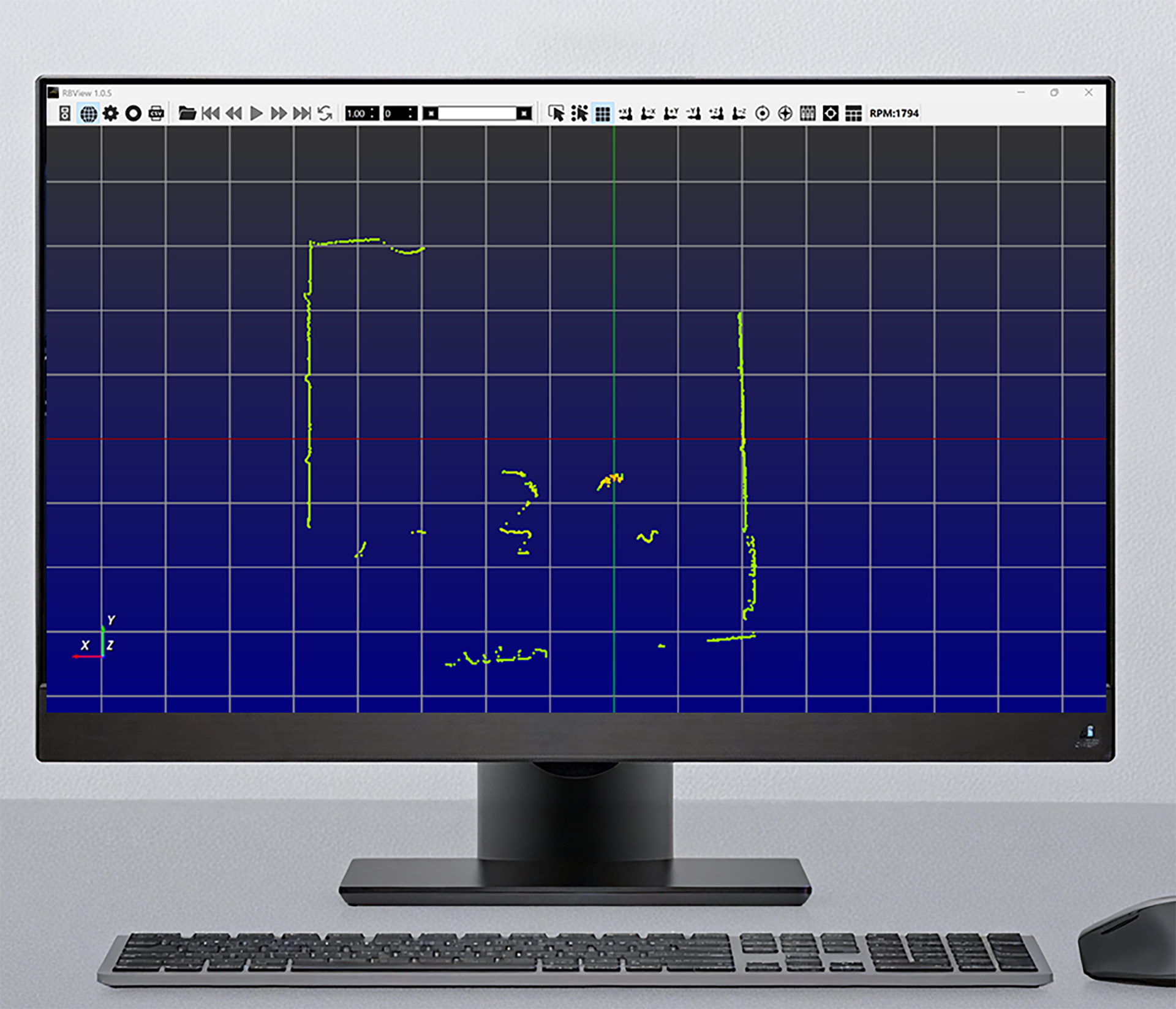

We have designed RBView point cloud visualization software for the LoraBeam series, which can be used to display point cloud data of all LiDAR detectors connected to the computer in real time. With RBView, users can easily view, record and store point cloud data for later use.

software

Cases

Industry's Lowest Price! Richbeam Releases New Sub-$100 360° Wireless Safety LiDAR
Industry's Lowest Price! Richbeam Releases New Sub-$100 360° Wireless Safety LiDAR

The core mission of KoraBeam 1E is real-time protection.

Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security
Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security

Railway Track Foreign Object Detection Solution Based on LiDAR Technology.

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes
China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

Product Details

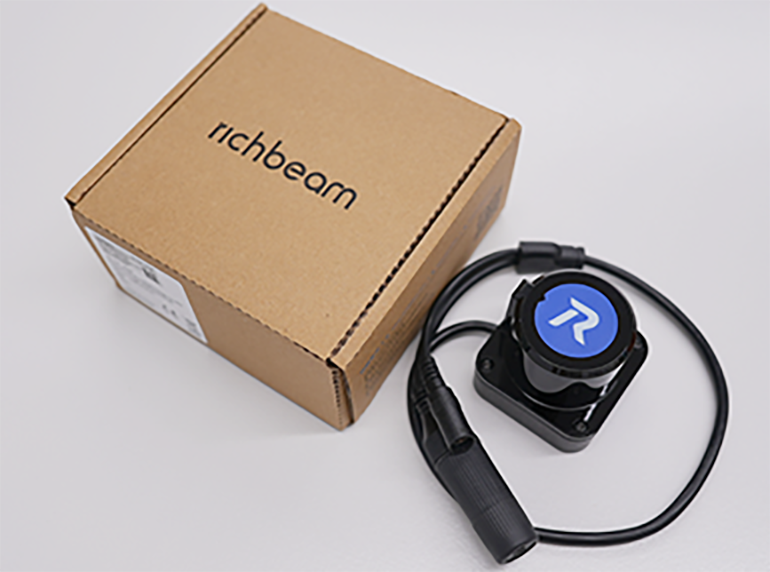

Product List

product

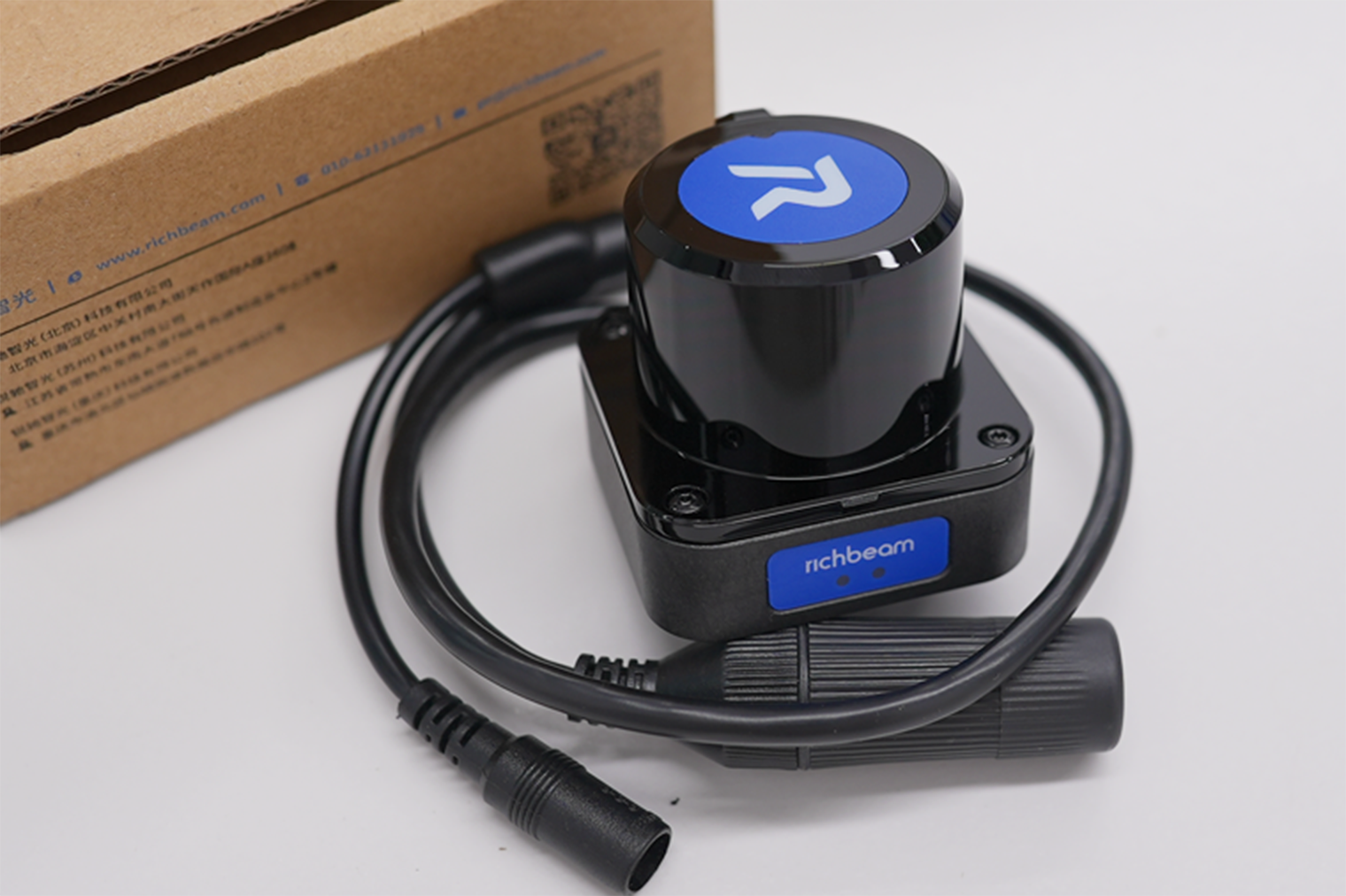

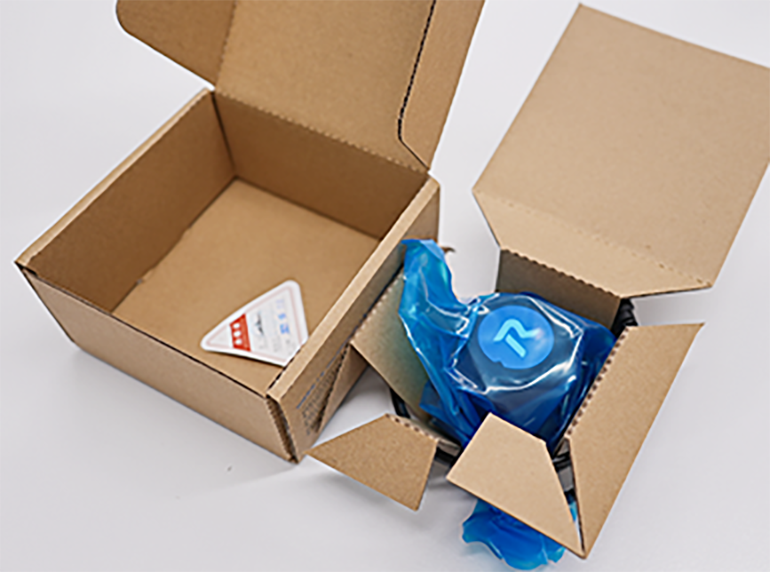

Product packaging

product

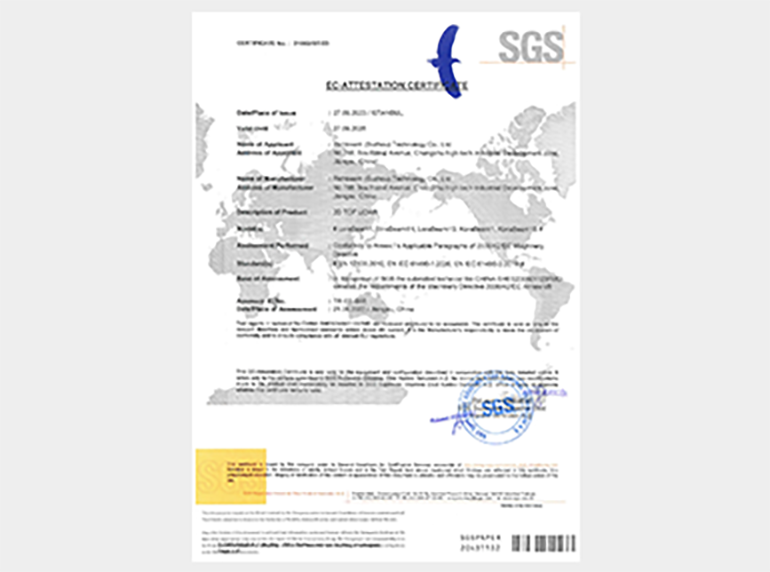

CE certification

product

Customization

Didn't find a LiDAR that meets your requirements? Let's discuss your problem together. Our professional technical team can provide you with customized services.

Contact Our Experts

FAQ List

Can LiDAR detect transparent glass?

LiDAR works based on optical detection principles. Laser beams can pass through transparent glass, which may result in a certain probability of missed detection. For environments with many glass surfaces, we recommend adding auxiliary reflective measures, such as applying frosted stickers, or using other non-optical sensors for redundancy.
