KoraBeam is an obstacle avoidance LiDAR launched by Richbeam for commercial applications such as robots, AGVs (automatic guided vehicles) and autonomous driving, as well as industrial scenarios such as security warning, hazardous area monitoring and driving area detection. Different from traditional single-line LiDARs, KoraBeam provides intuitive and easy-to-use usability through its I/O output switch function. This feature enables users to integrate and deploy the system with minimal setup, making it an ideal choice for technical and non-technical teams seeking efficient environmental perception solutions.

Video

The video content is a demonstration of the KoraBeam area warning effect. When an object reaches the obstacle avoidance area, an alarm is triggered and the corresponding indicator light turns on. The obstacle avoidance area supports drawing sectors, squares, and polygons.

Custom area obstacle avoidance

You can freely set different alarm areas according to the actual usage environment, and the excellent data sampling and point cloud performance can provide very reliable data support for anti-collision warning.

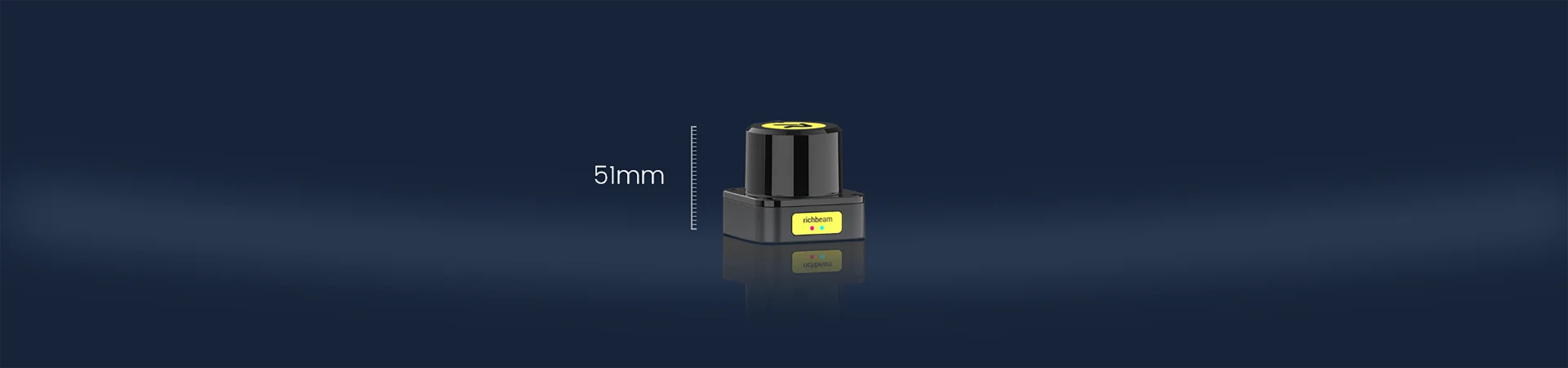

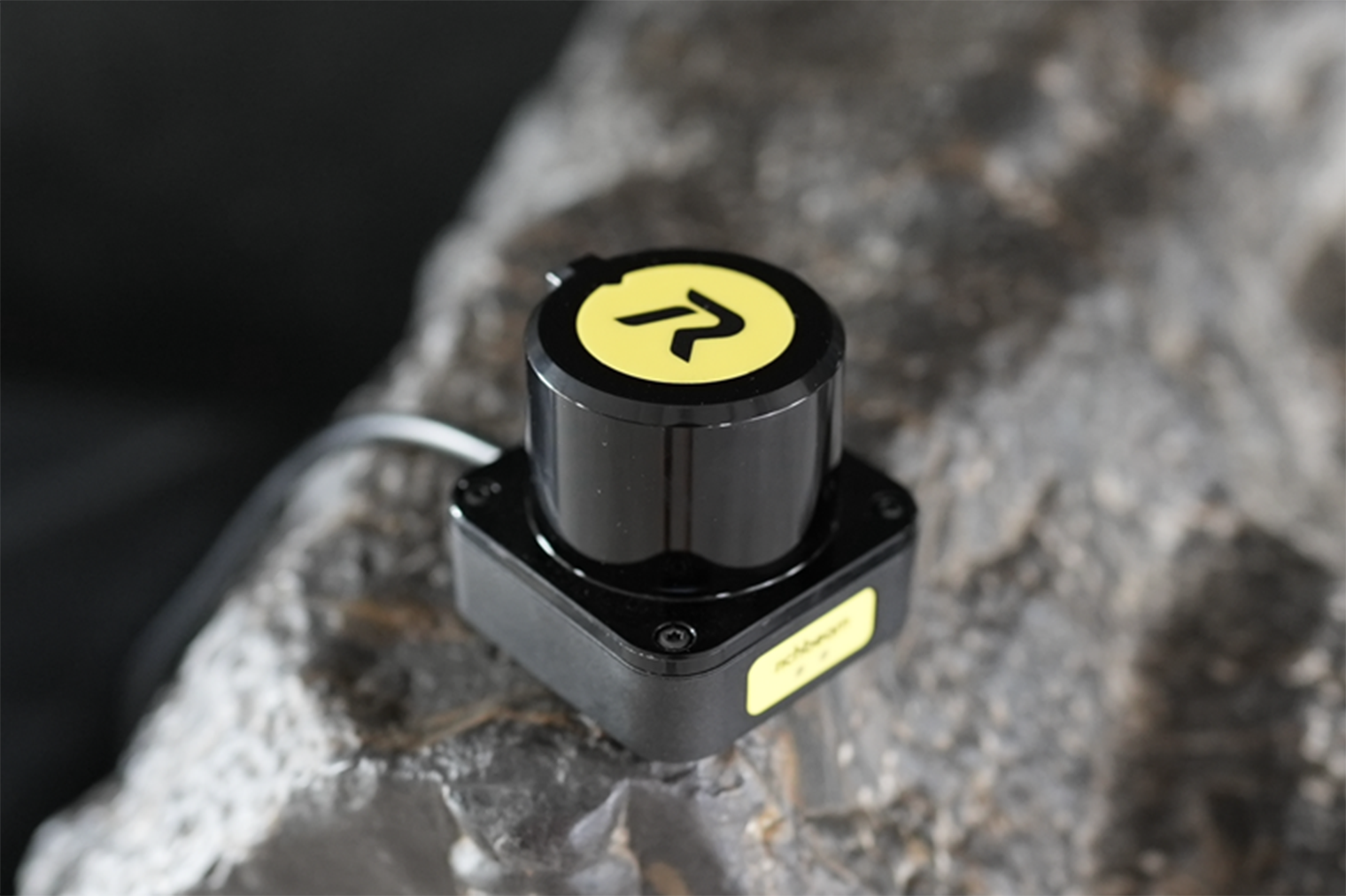

Compact form factor

Compact and with special designed, KoraBeam is 45% smaller than LakiBeam series and weighs only 85g, easy for users to assemble.

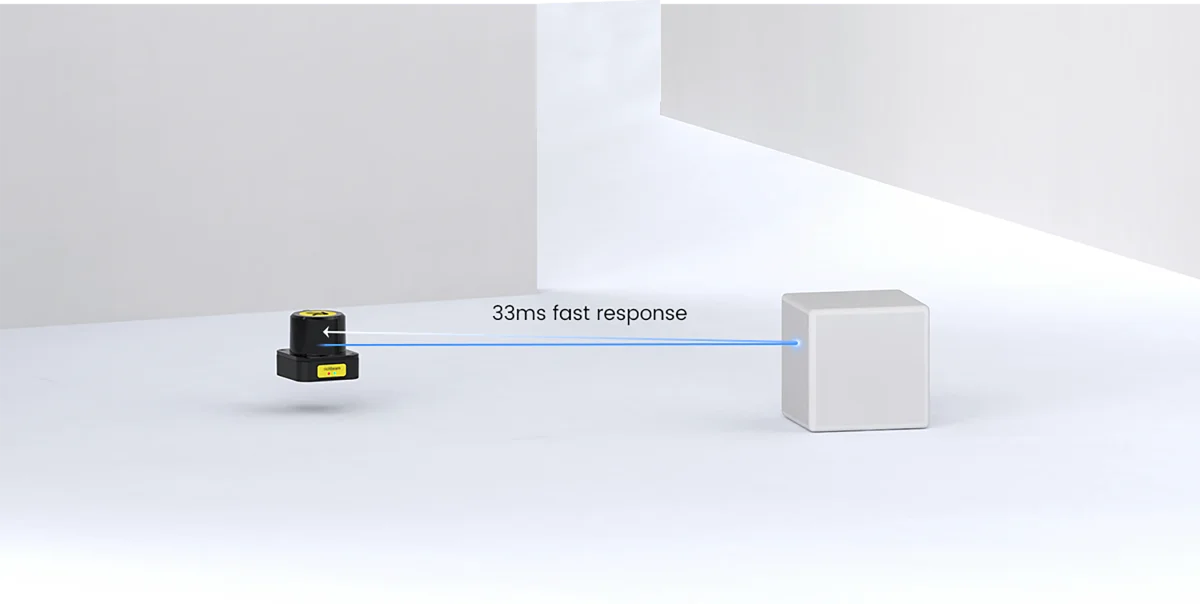

Instant alert and rapid response

KoraBeam achieves a maximum scanning speed of 30Hz, enabling rapid obstacle detection within 33ms for instant alarm triggering.

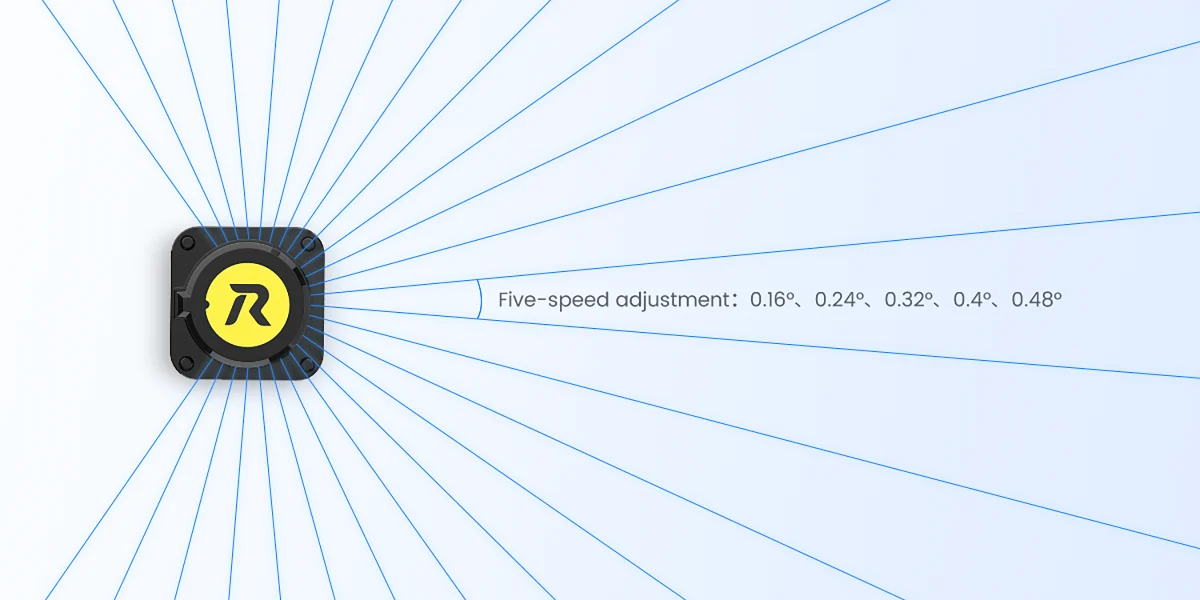

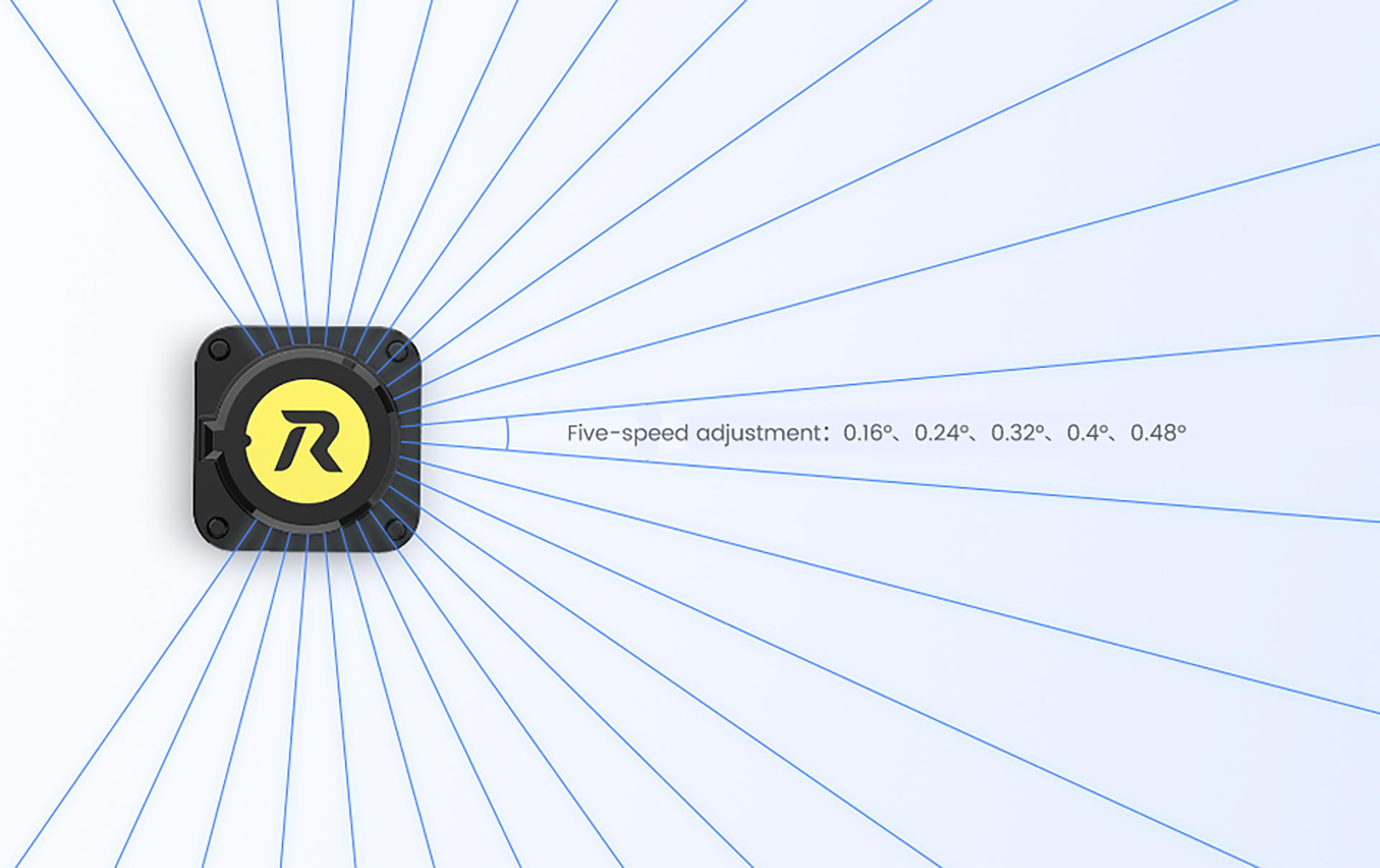

Adjustable Resolution

The resolution is adjustable in 5 levels: 0.16°, 0.24°, 0.32°, 0.4°, 0.48°.

Core Specifications

规格参数
Range
Scanning Principle
Range Principle
Range Accuracy
Horizontal FOV
Horizontal Resolution
Scan Frequency
Data Sample Rate
Data transmission method
Digital Output Number
Digital Output
Response Time
Start Time
Detection Output Time
Detection Holding Time
Regional Group
Laser Class
Wavelength
Operating Voltage
Power Consumption
Operating Temperature
Storage Temperature
Resistance to Ambient Light
Environmental Protection
Dimension
Weight

KoraBeam1E New	KoraBeam1S New	KoraBeam1 New	KoraBeam1L New
10m@(90%reflectivity) 8m@(10%reflectivity)	≥10m(70%reflectivity) ≥5m(10%reflectivity)	≥20m(70%reflectivity) ≥10m(10%reflectivity)	≥40m(70%reflectivity) ≥20m(10%reflectivity)
1D Rotating Mirror	1D Rotating Mirror	1D Rotating Mirror	1D Rotating Mirror
dTOF	dTOF	dTOF	dTOF
±10mm(0.05-2m)，士1%(>2m)	±2cm	±2cm	±2cm
360°	270°	270°	270°
0.9°	0.16°,0.24°,0.32°,0.4°,0.48°	0.16°,0.24°,0.32°,0.4°,0.48°	0.16°,0.24°,0.32°,0.4°,0.48°
10Hz	10Hz,15Hz,20Hz,25Hz,30Hz	10Hz,15Hz,20Hz,25Hz,30Hz	10Hz,15Hz,20Hz,25Hz,30Hz
4KHz	22.5KHz	22.5KHz	22.5KHz
WIFI	RS485-Modbus	RS485-Modbus	RS485-Modbus
2input channels, 4 output channels	4 input channels,4 output channels	4 input channels,4 output channels	4 input channels,4 output channels
4NPN/PNP Signals	4NPN/PNA Signals	4NPN/PNA Signals	4NPN/PNA Signals
100ms	33ms(30Hz)	33ms(30Hz)	33ms(30Hz)
no	＜15s	＜15s	＜15s
0-1000ms	0-1000ms	0-1000ms	0-1000ms
no	0-1000ms	0-1000ms	0-1000ms
2	16 fields set	16 fields set	16 fields set
Class 1 Eye Safe	Class1 Eye Safe	Class1 Eye Safe	Class1 Eye Safe
905nm	905nm	905nm	905nm
9V to 36V	9V-36V	9V-36V	9V-36V
1.5W	2.5W	2.5W	2.5W
-10°C to 50°C	-25°C to 60°C	-25°C to 60°C	-25°C to 60°C
-30°C to 70°C	-40°C to 75°C	-40°C to 75°C	-40°C to 75°C
600000Lux	100000Lux	100000Lux	100000Lux
no	IP66,IP67（Select）	IP66,IP67（Select）	IP66,IP67（Select）
52.7mm×45.2mm×44.7mm	55mm×55mm×51mm	55mm×55mm×51mm	55mm×55mm×51mm
51g	85g	85g	85g

Software features

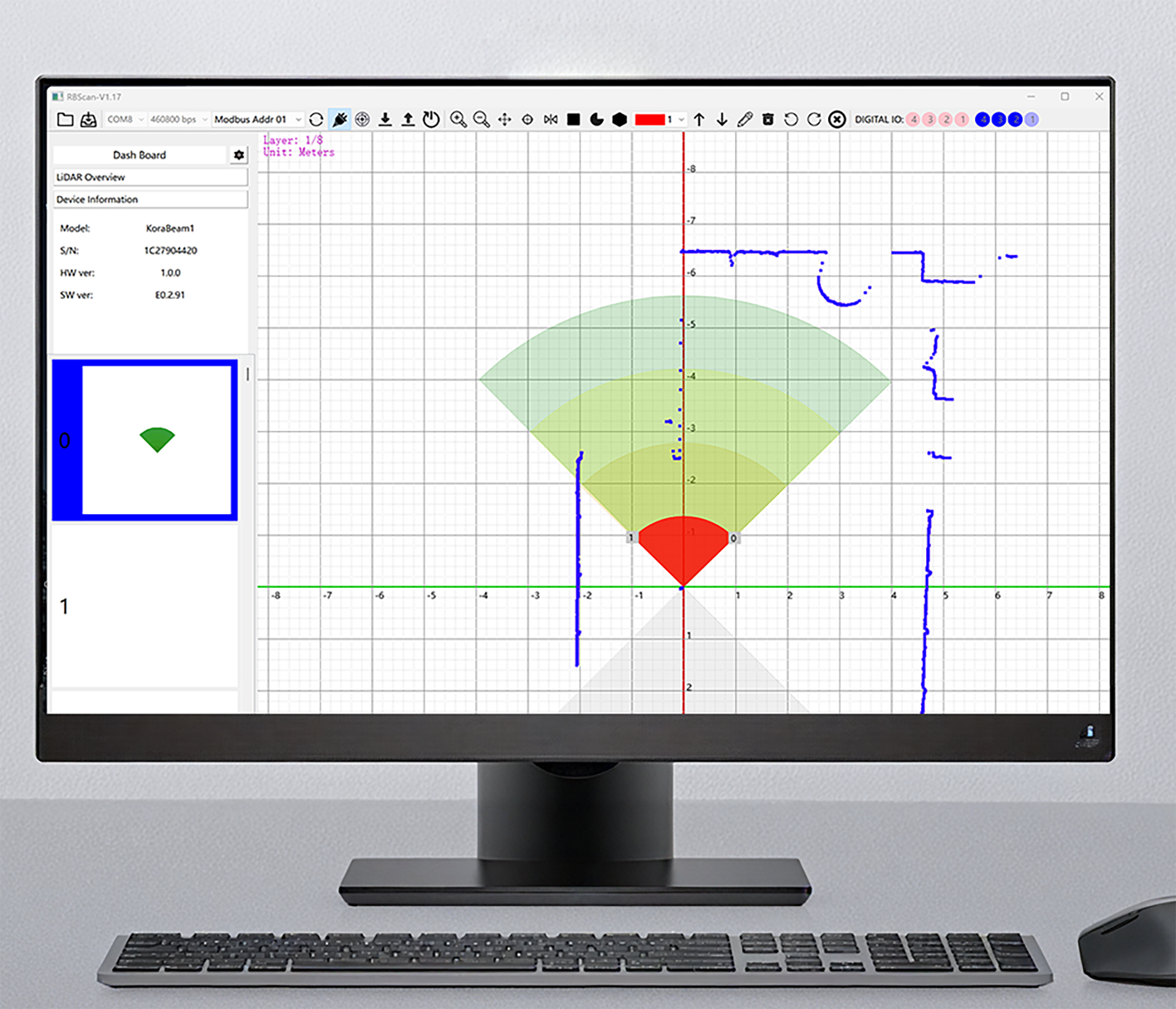

RBScan is dedicated software for the KoraBeam series, enabling real-time point cloud visualization from all connected LiDAR sensors and configurable protection zone setup.

Cases

Industry's Lowest Price! Richbeam Releases New Sub-$100 360° Wireless Safety LiDAR

The core mission of KoraBeam 1E is real-time protection.

Richbeam collaborates with PANDA LIFT, using LiDAR technology to safeguard warehouse security in Russia.

KoraBeam uses lidar technology to safeguard industrial safety and security.

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

Industry's Lowest Price! Richbeam Releases New Sub-$100 360° Wireless Safety LiDAR

The core mission of KoraBeam 1E is real-time protection.

Richbeam collaborates with PANDA LIFT, using LiDAR technology to safeguard warehouse security in Russia.

KoraBeam uses lidar technology to safeguard industrial safety and security.

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

Product Details

Product List

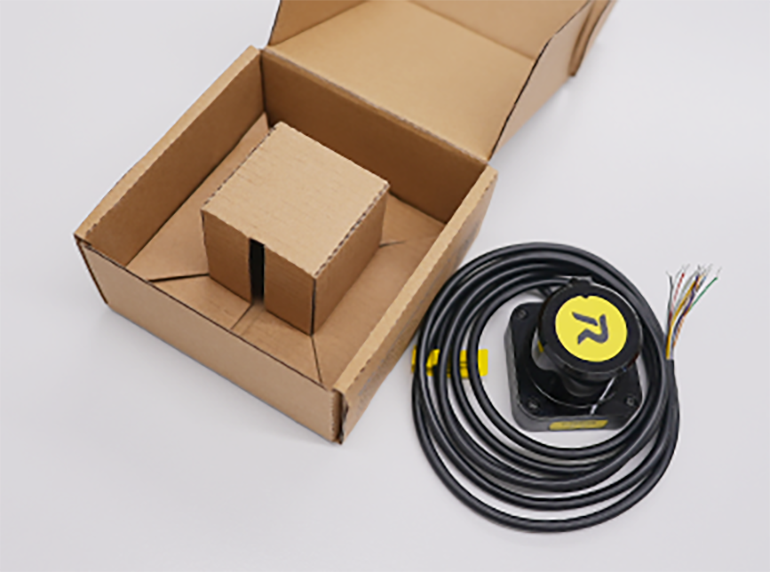

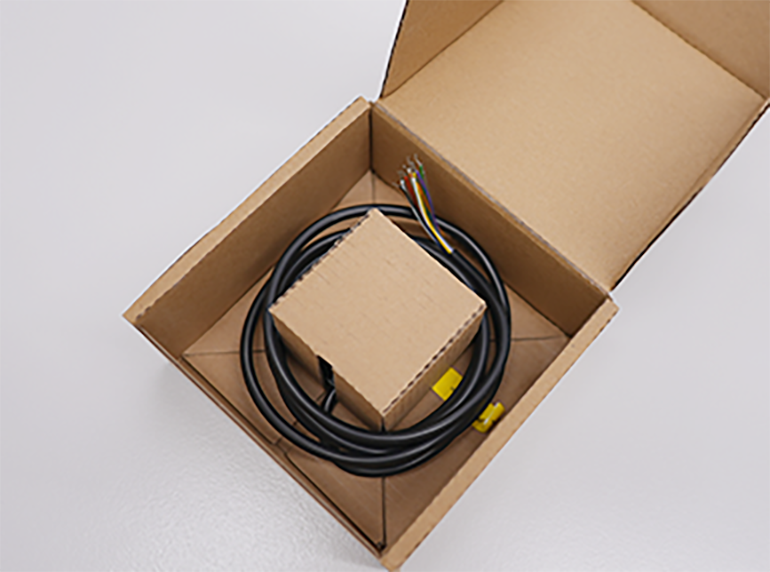

Product packaging

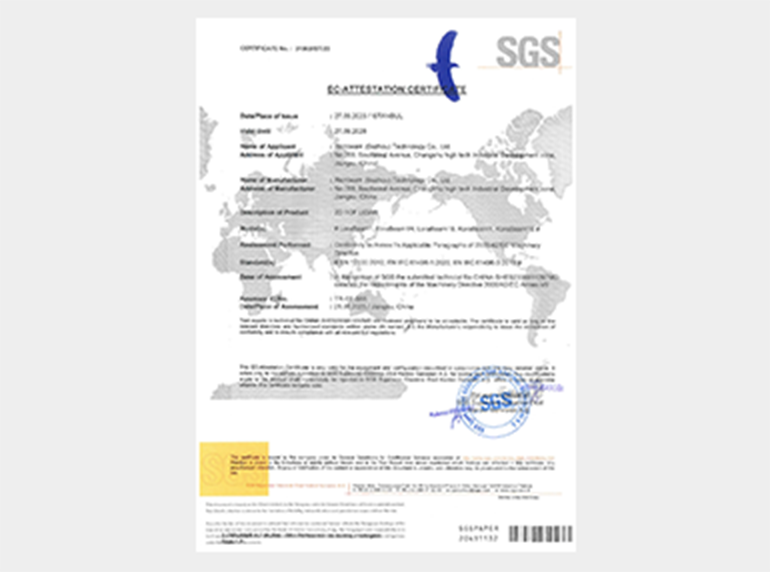

CE Certification

Customization

Didn't find a LiDAR that meets your requirements? Let's discuss your problem together. Our professional technical team can provide you with customized services.

Contact Our Experts

FAQ List

What makes KoraBeam different from other LiDARs?

KoraBeam can directly output I/O signals, making it very easy to use-commonly paired with alarm lights in industrial safety scenarios.Overall, KoraBeam is more user-friendly.

What is the product warranty period?

Where can I purchase the products?

For more questions, please visit our WIKI link.

All Q&A
