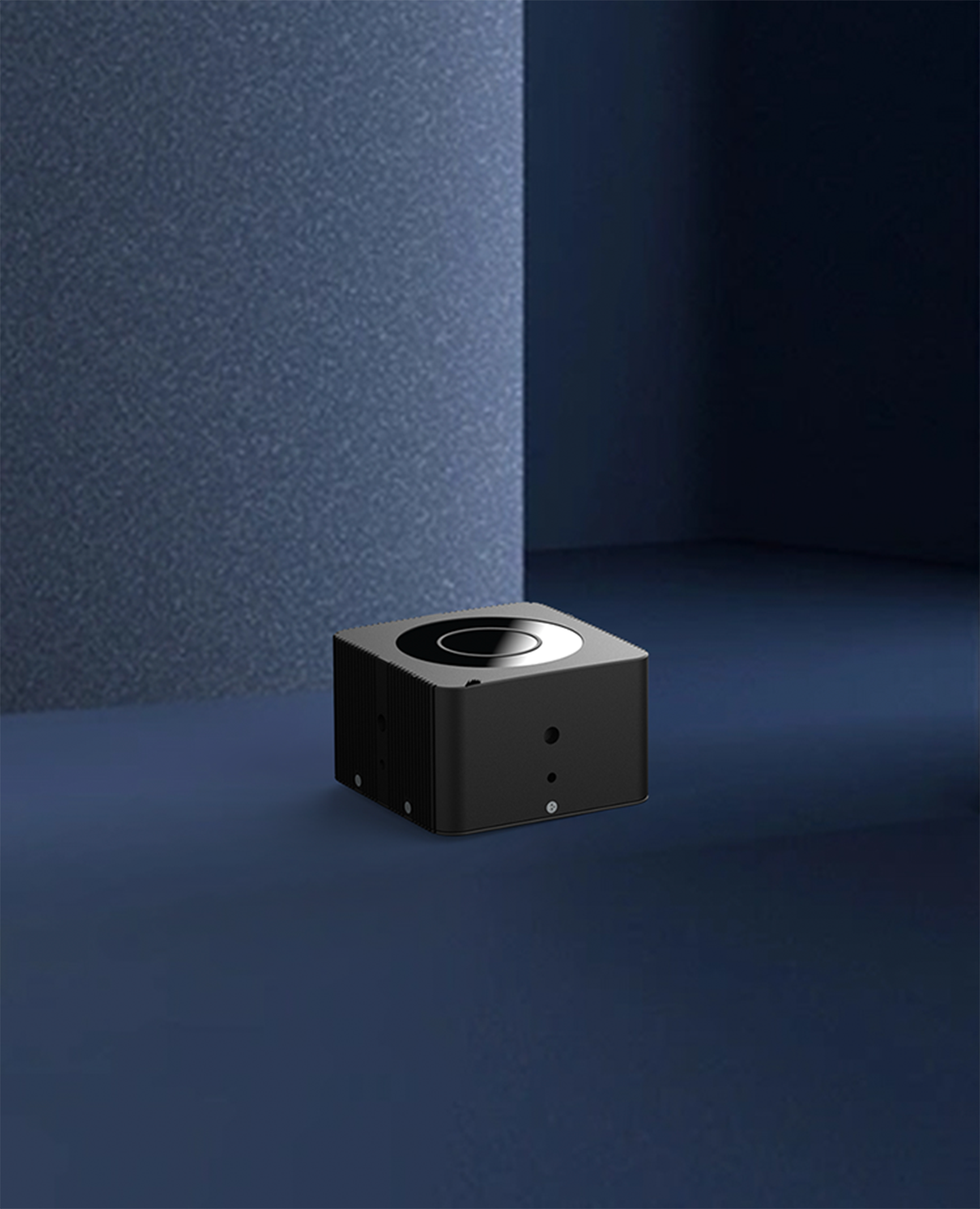

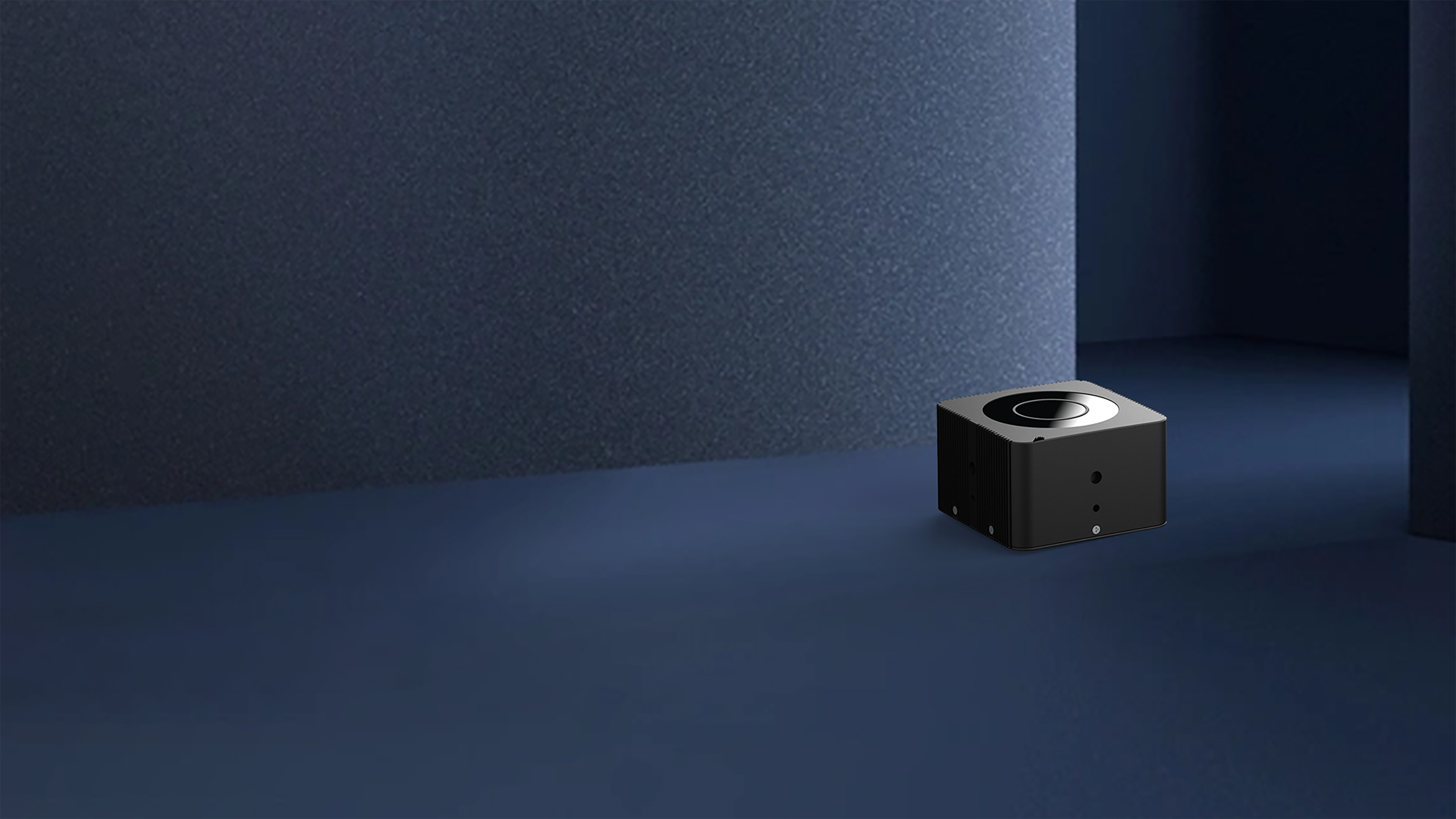

What is pure solid-state LiDAR? Pure solid-state LiDAR represents the future trend of LiDAR technology in pursuit of high reliability, miniaturization, low cost, and easy mass production, and is also an important development direction of LiDAR technology. HaloBeam120 series is a pure solid-state LiDAR developed by Richbeam, with no mechanical moving parts and high reliability. It has 120-line equivalent resolution, works stably under strong light, and has passed IP67 and automotive-grade certification. It is suitable for scenes such as automotive blind spot compensation, unmanned delivery vehicles and smart forklifts.

Video

Rain or Shine Targets Stay Clear

Zero Mechanical Failure

All-solid-state architecture and zero mechanical wear design extend its lifespan 10 times that of traditional LiDAR.

Compact design

Compact design, easy to integrate into the vehicle body or equipment, low production cost, conducive to large-scale application.

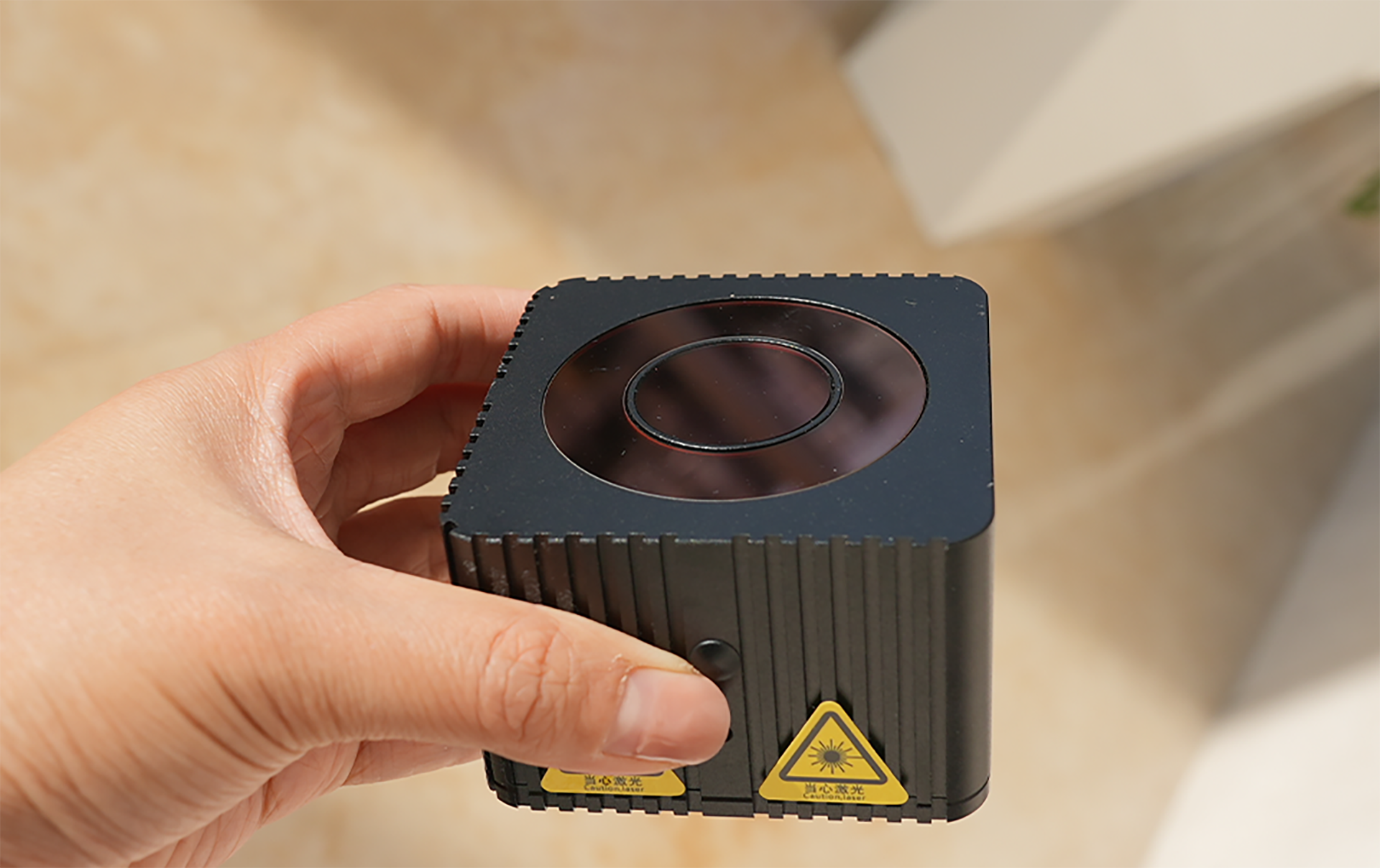

Extreme Environment Resilience

HaloBeam120 has a higher IP rating and can meet automotive-grade standards to adapt to more demanding and complex environments.

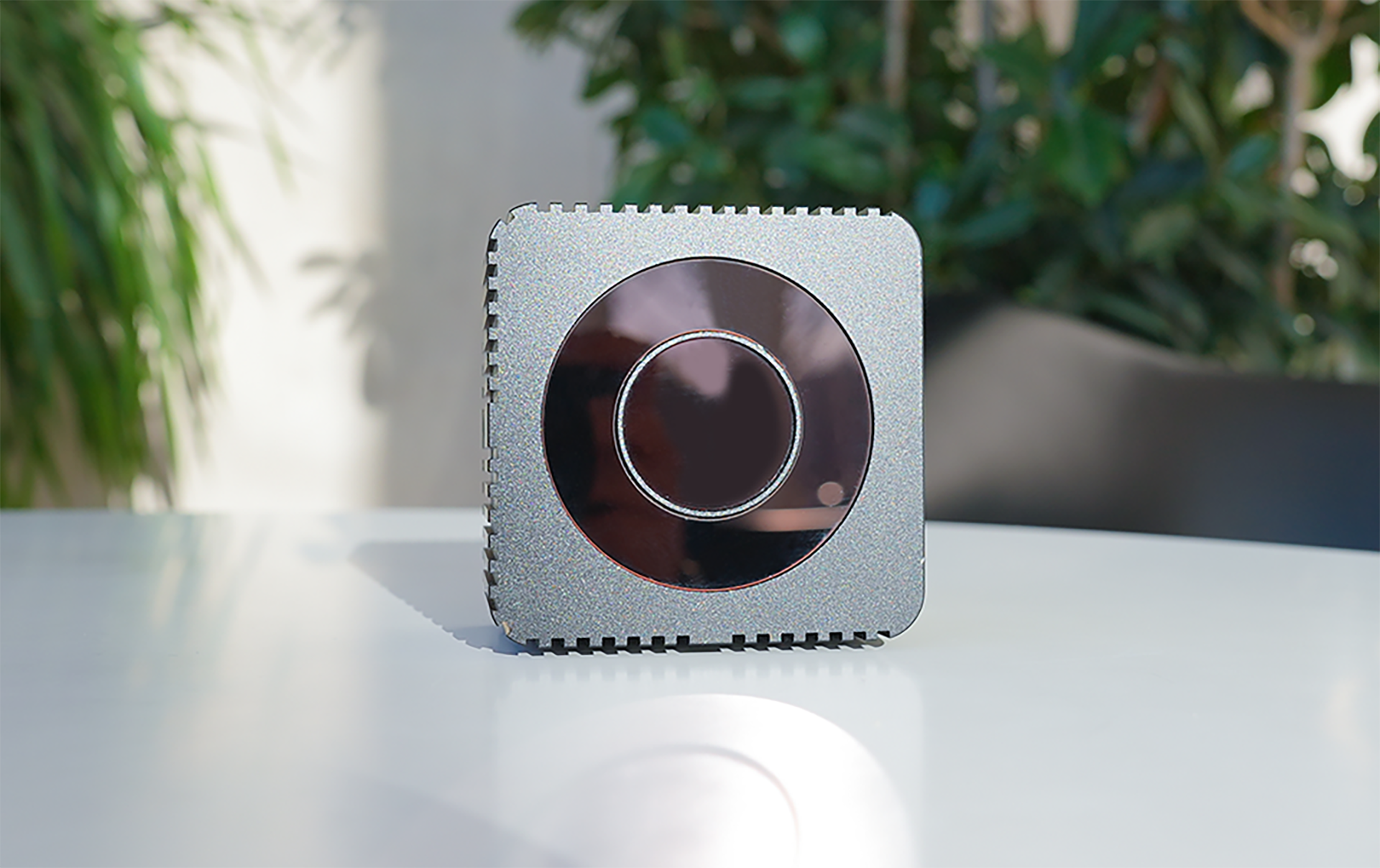

Mass-Production Cost Efficiency

Semiconductor manufacturing will see significant reductions in unit costs, accelerating return on investment for “last mile” delivery robots and Industrial IoT deployments.

Core Specifications

规格参数
Weight
Dimension
FOV
Range @50%
Output Data
Angular Resolution
SDK
Accuracy
Frame Rate
Wavelength
Voltage
Operating Temp

HaloBeam120 New	HaloBeam120W New
196g	198g
72mm×72mm×45mm	68mm×68mm×45mm
72°×58°	106°×80°
30m (outdoor) 0.3-40m (indoor)	10m (outdoor) 0.3-12m (indoor)
IR image / Depth image / 3D point cloud	IR image / Depth image / 3D point cloud
0.22°H×0.48°V	0.33°H×0.33°V
C++/Python/Linux/Ros	C++/Python/Linux/Ros
1-3%	1-3%
10 -30 fps	10 -24 fps
940nm	940nm
12V@5A-25V@3A (M12 aviation connector)	12-25V@3A/DC
-40°C to 85°C	-20°C to 60°C

Software Functions

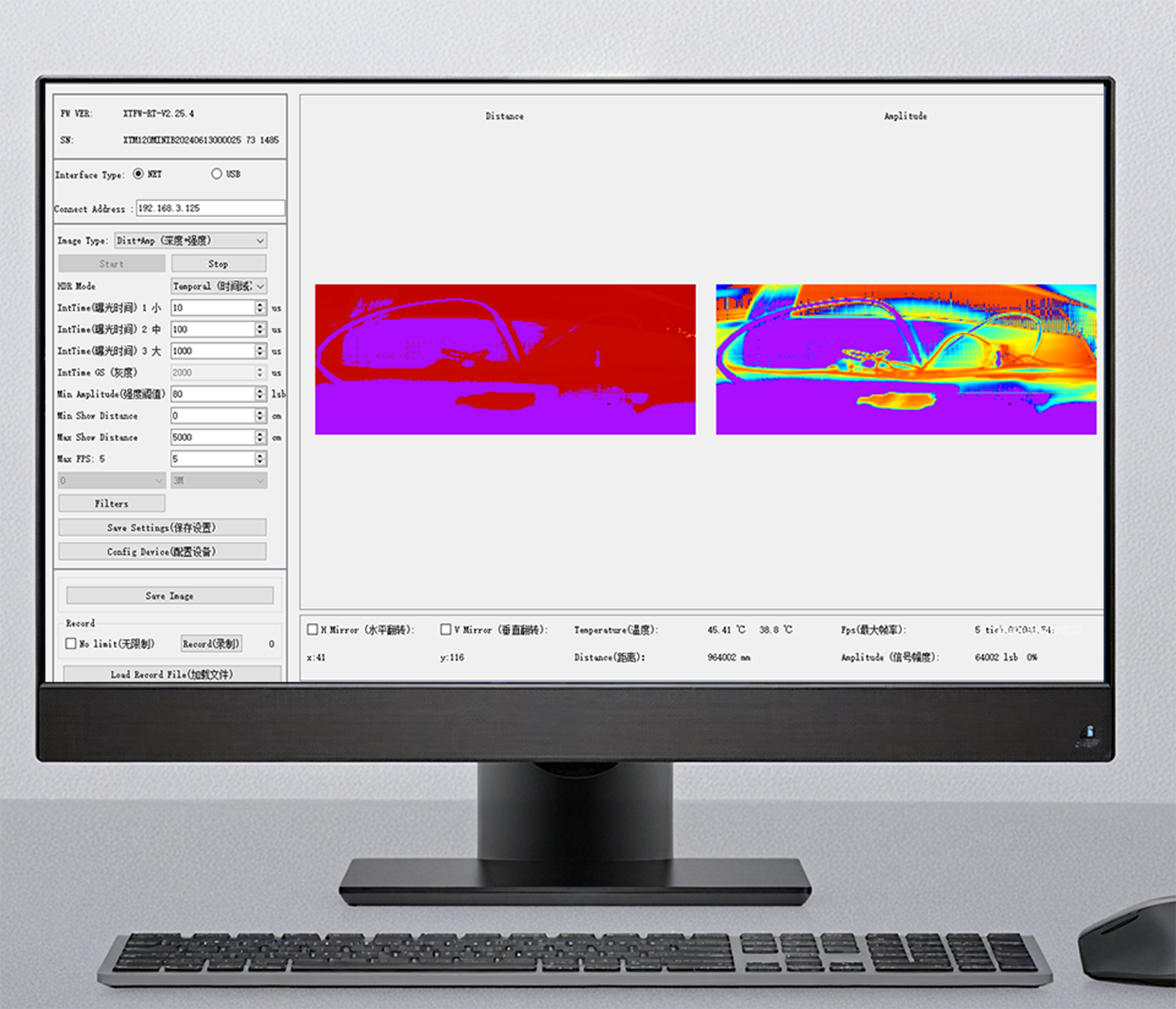

XT-Tofuture host computer is an installation-free application that can effectively display the distance, point cloud, grayscale, amplitude and other information of the LiDAR to help testers and customers quickly understand the performance of the LiDAR. It currently supports Windows 10 and above operating systems.

Cases

Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security

Railway Track Foreign Object Detection Solution Based on LiDAR Technology.

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

The high-performance version of the LakiBeam LiDAR has been officially delivered!

The 75-meter range laser radar sees further, wider, and with greater detail.

Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security

Railway Track Foreign Object Detection Solution Based on LiDAR Technology.

China Electronics Corporation (CEC) has partnered with Richbeam to develop high-quality LiDAR systems, accelerating the pace of domes

Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.

The high-performance version of the LakiBeam LiDAR has been officially delivered!

The 75-meter range laser radar sees further, wider, and with greater detail.

Product Details

Product List

Packaging

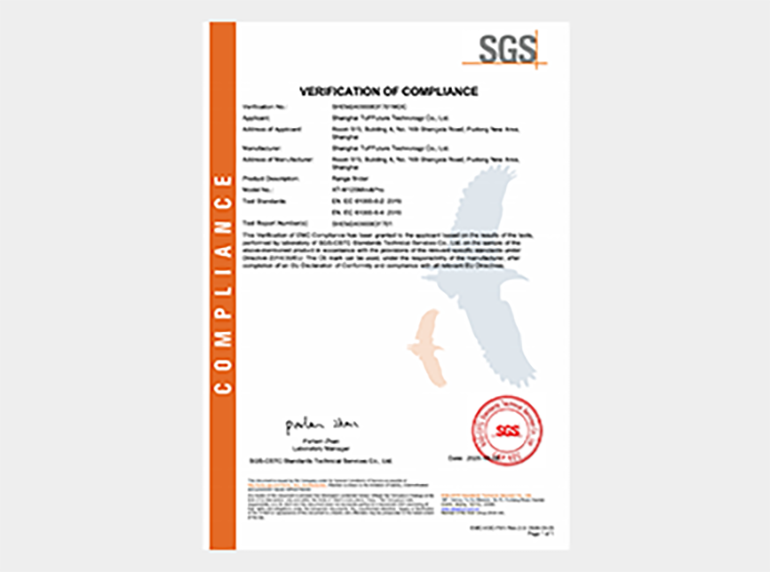

CE certification
