Born for Large Scene Measurement

BeamMasterX

Stand-up 3D laser scanner that provides accurate and on-demand volumetric data.

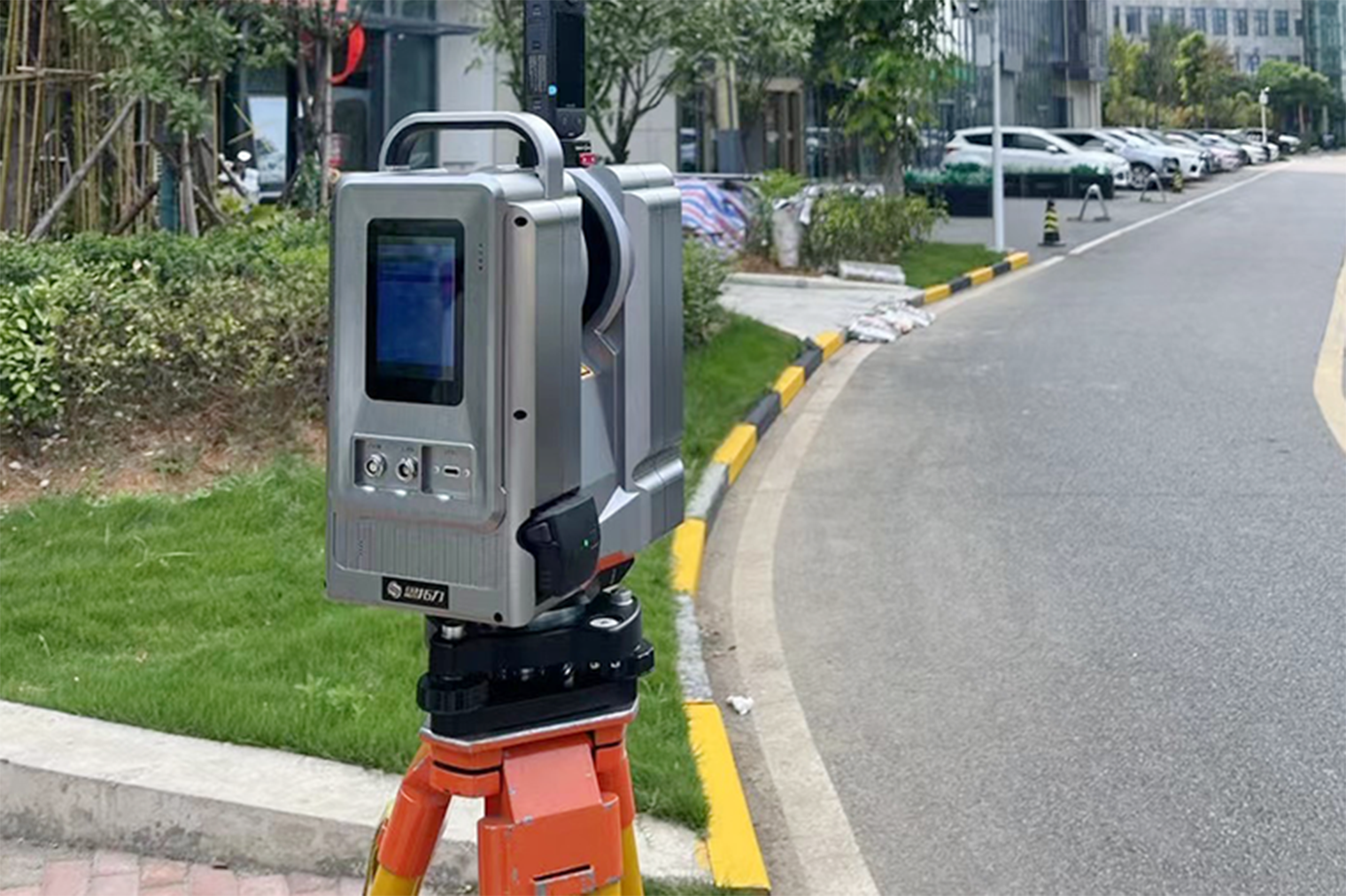

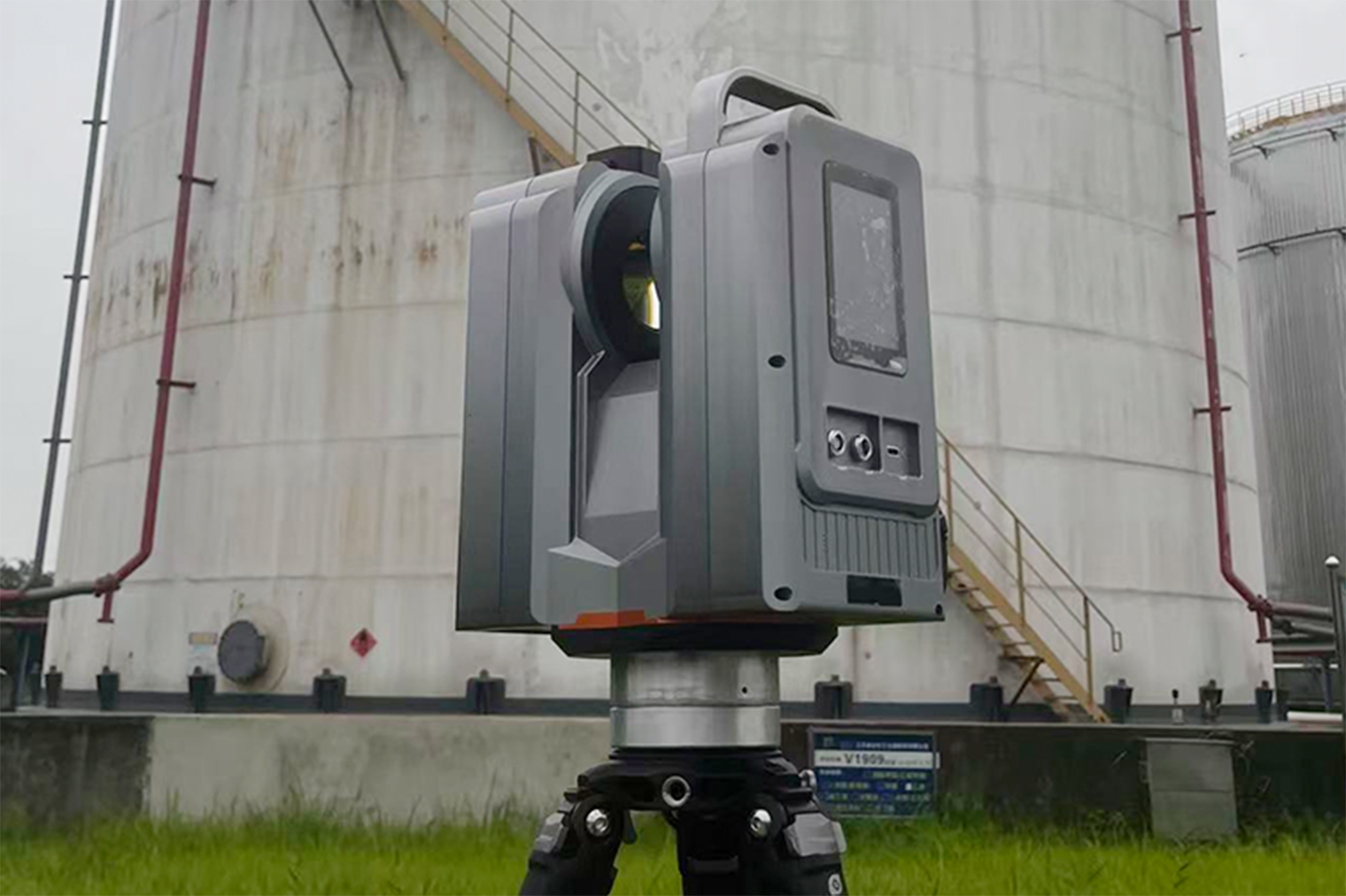

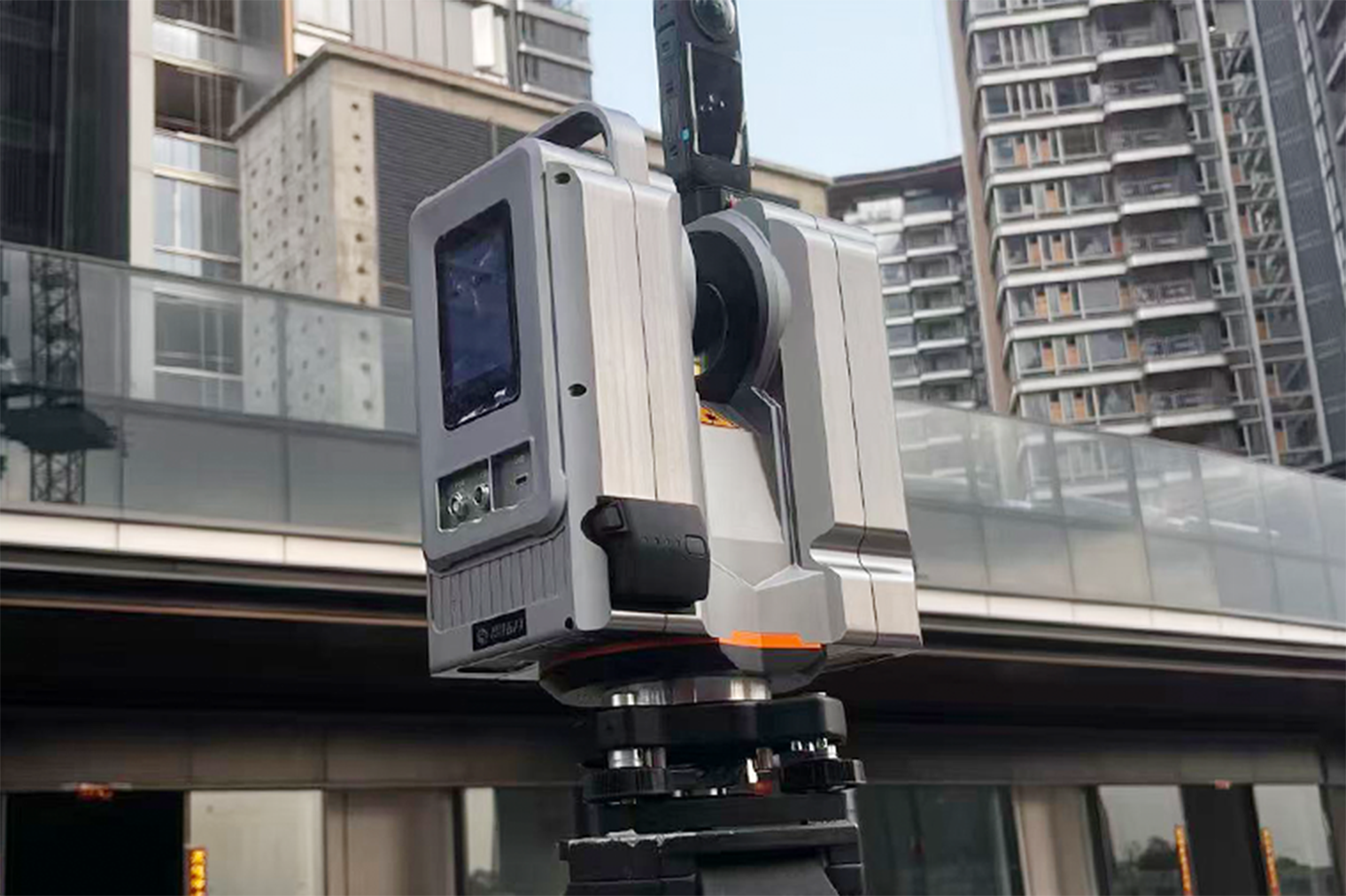

BeamMaster X is a tripod-mounted 3D laser scanner, perfect for quick and accurate scanning of objects and environments. BeamMaster X’s first target-based scanner captures ultra-accurate 3D data with high repeatability, making it indispensable for industrial, engineering, and design applications. The scanner features a pinpoint accuracy of up to 1.5 mm.Its blazing scanning speed allows users to capture up to 300000pts measurements per second, ensuring rapid and efficient data collection.

Video

This is a 3D laser scanner specifically designed for scanning large buildings. The video demonstrates the workflow of the BeamMaster X.

±1.5mm Industrial Precision

The high-precision rotating platform is equipped with a high-precision laser head, with a measurement accuracy of up to ±1.5mm, far ahead of the industry level.

±1.5mm Industrial Precision

Adaptive Scanning Modes

It is divided into three scanning modes: fast, standard and fine, taking into account both scanning efficiency and efficiency, and meeting the needs of various scenarios.

Adaptive Scanning Modes

Wireless Command Center

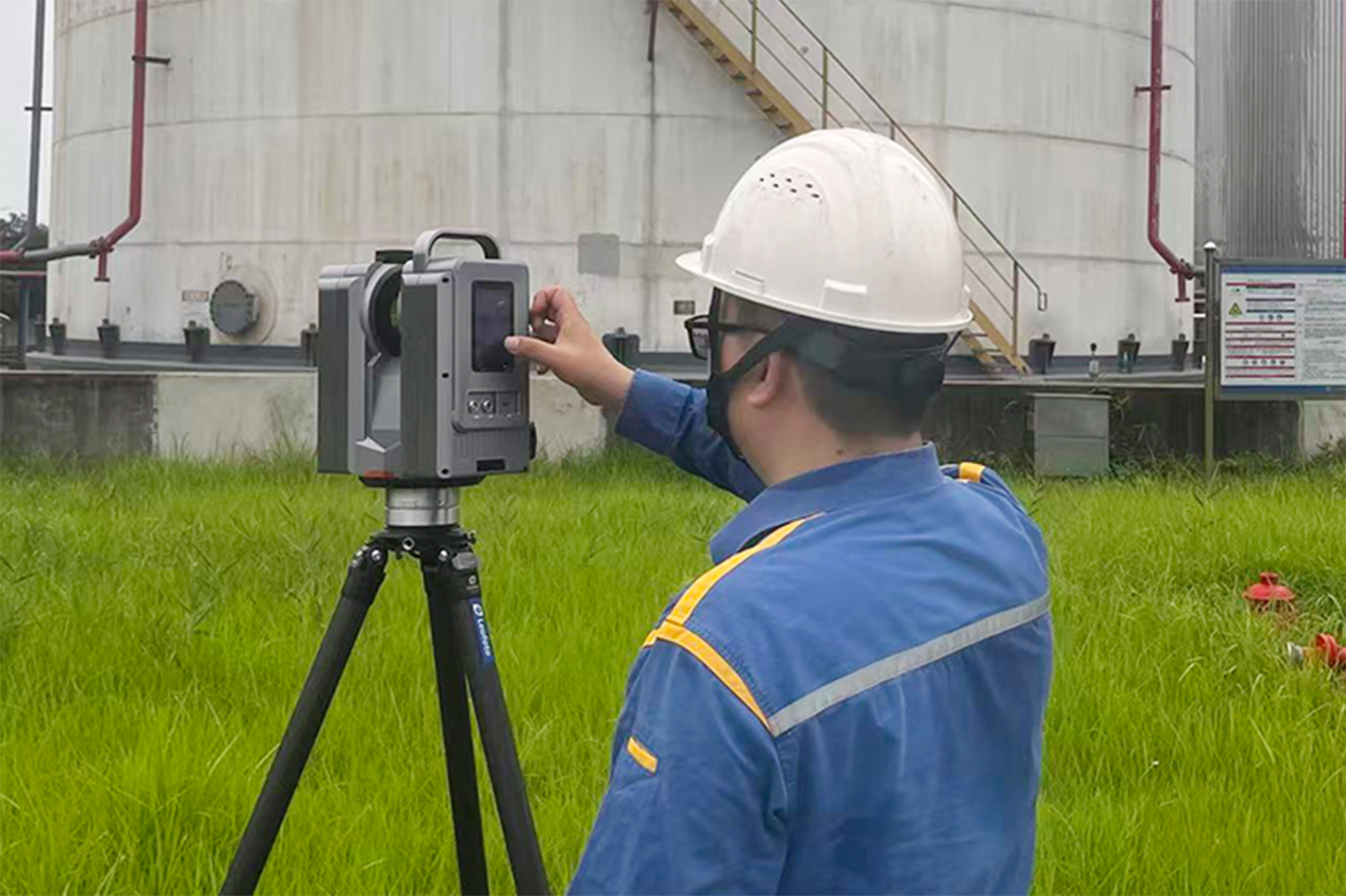

Built-in WiFi hotspot, the scanner can be remotely controlled through any terminal device with WiFi (smartphone, tablet, laptop, etc.).

Wireless Command Center

Streamlined Workflow

Export point clouds via USB 3.0 or control scans on the 3.5" touchscreen – no PC required.

Streamlined Workflow

Core Specifications

Dimensions220mm×109mm×295mm
Scanning Speed300,000 points/s
WiFi802.11b/g/n wireless WLAN
Weight4.26kg
Detection Range0.5-500m
Angular Resolution0.015°
Scanning Field of ViewHorizontal 360° × Vertical 300°
ModeFast/Standard/Detailed
Compensator Accuracy 0.005deg, compensation range 15deg
Spot Divergence Angle0.4 mrad
Ranging500m (80% reflectivity), 150m (20% reflectivity)
Wavelength1550nm
Laser ClassClass 1 (eye-safe laser)
Average Power Consumption40W
Data Storage512G, M.2-2242 SATA protocol, sequential read/write 550MB/S
Screen3.5-inch LCD touchscreen
Power Supply1 built-in battery (2.5h continuous operation)
Protection ClassIP54 (aluminum alloy material)
Colored Point CloudSupports external panoramic camera (compatible with Insta360 X4)
Operating Temperature-20℃ to 50℃
Storage Temperature-40℃ to 60℃
Repeatability±1mm
Measurement Accuracy ±1.5mm

Software functions

SI-Scan: Industrial-Grade Software for Instant 3D Reality Capture Transform raw scans into actionable intelligence with: • Massive point cloud processing at 1M pts/sec • AI-assisted mesh editing & Scan-to-BIM automation • Photorealistic rendering in Unreal Engine All within a unified Windows platform – turning complex data into VR-ready digital twins for factory planning or forensic analysis.

software

Cases

LakiBeam Series Helps Capital Normal University PIE Team Soar in Competitions
LakiBeam Series Helps Capital Normal University PIE Team Soar in Competitions

Recently, Richbeam and the W.PIE Student Innovation Laboratory of Capital Normal University have......

Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security
Shanghai Metro Line 11 Intruded by External Crawler Crane, Sounding Alarm for Perimeter Security

Railway Track Foreign Object Detection Solution Based on LiDAR Technology.

Richbeam collaborates with PANDA LIFT, using LiDAR technology to safeguard warehouse security in Russia.
Richbeam collaborates with PANDA LIFT, using LiDAR technology to safeguard warehouse security in Russia.

KoraBeam uses lidar technology to safeguard industrial safety and security.

Product Details

Product List

product

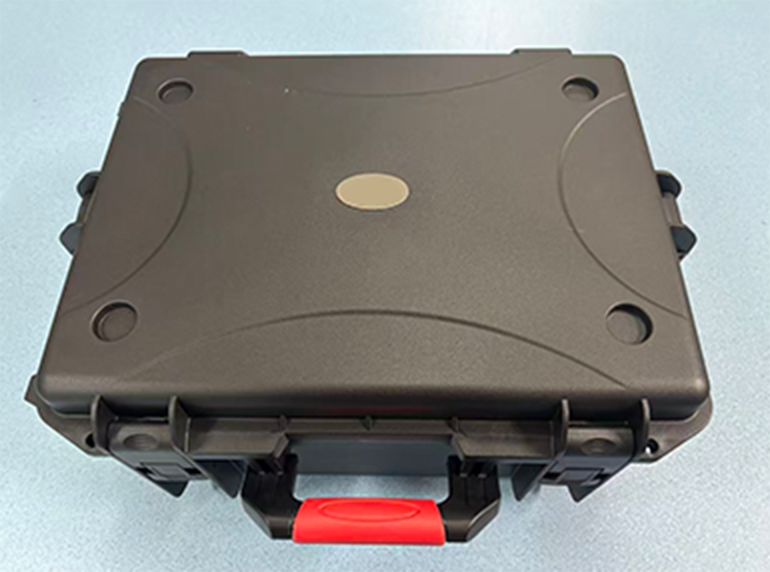

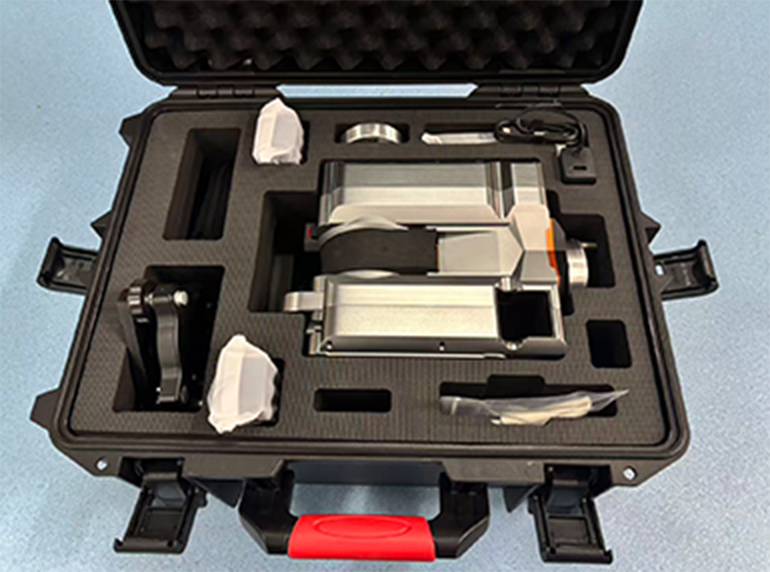

Packaging
