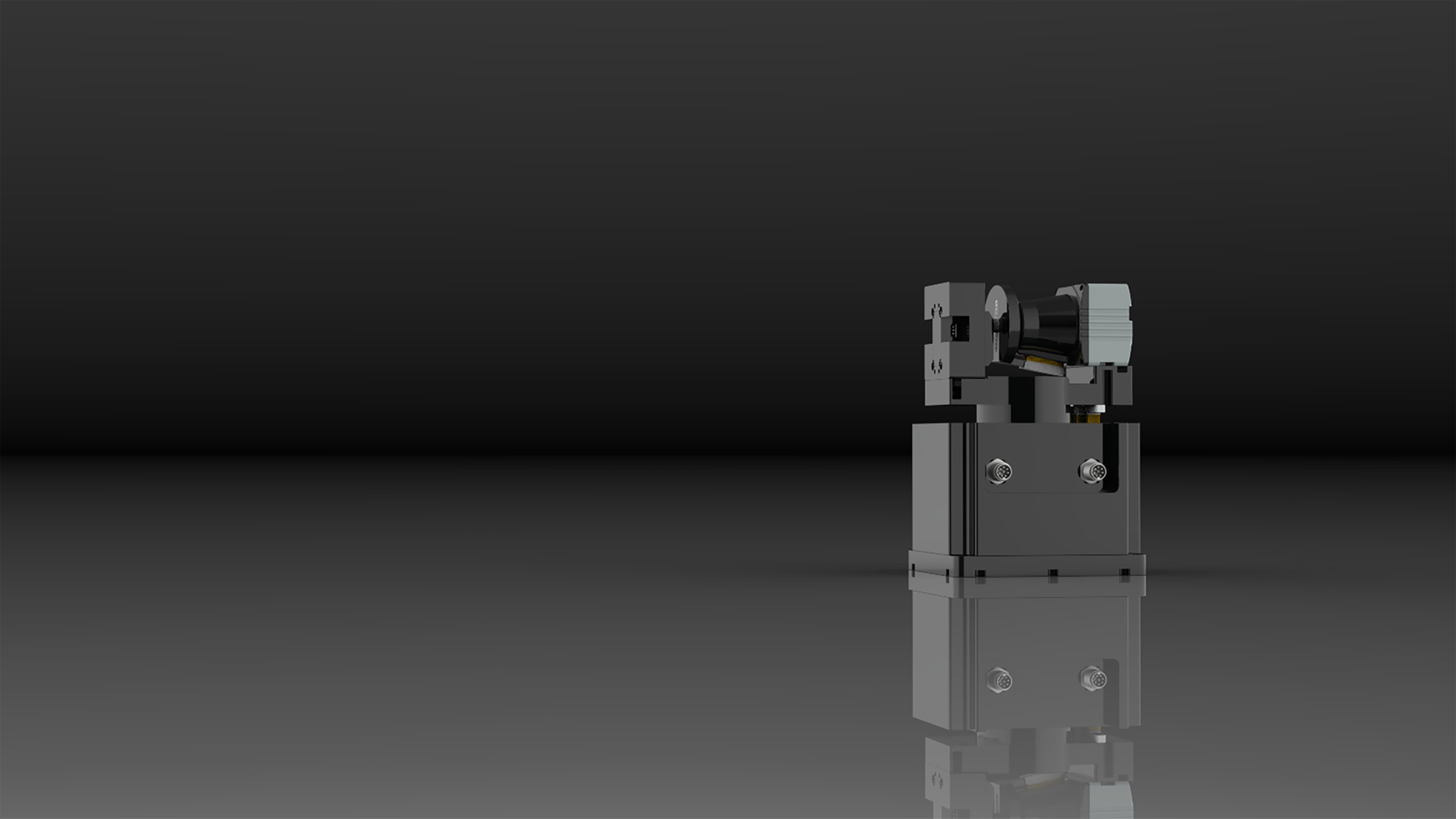

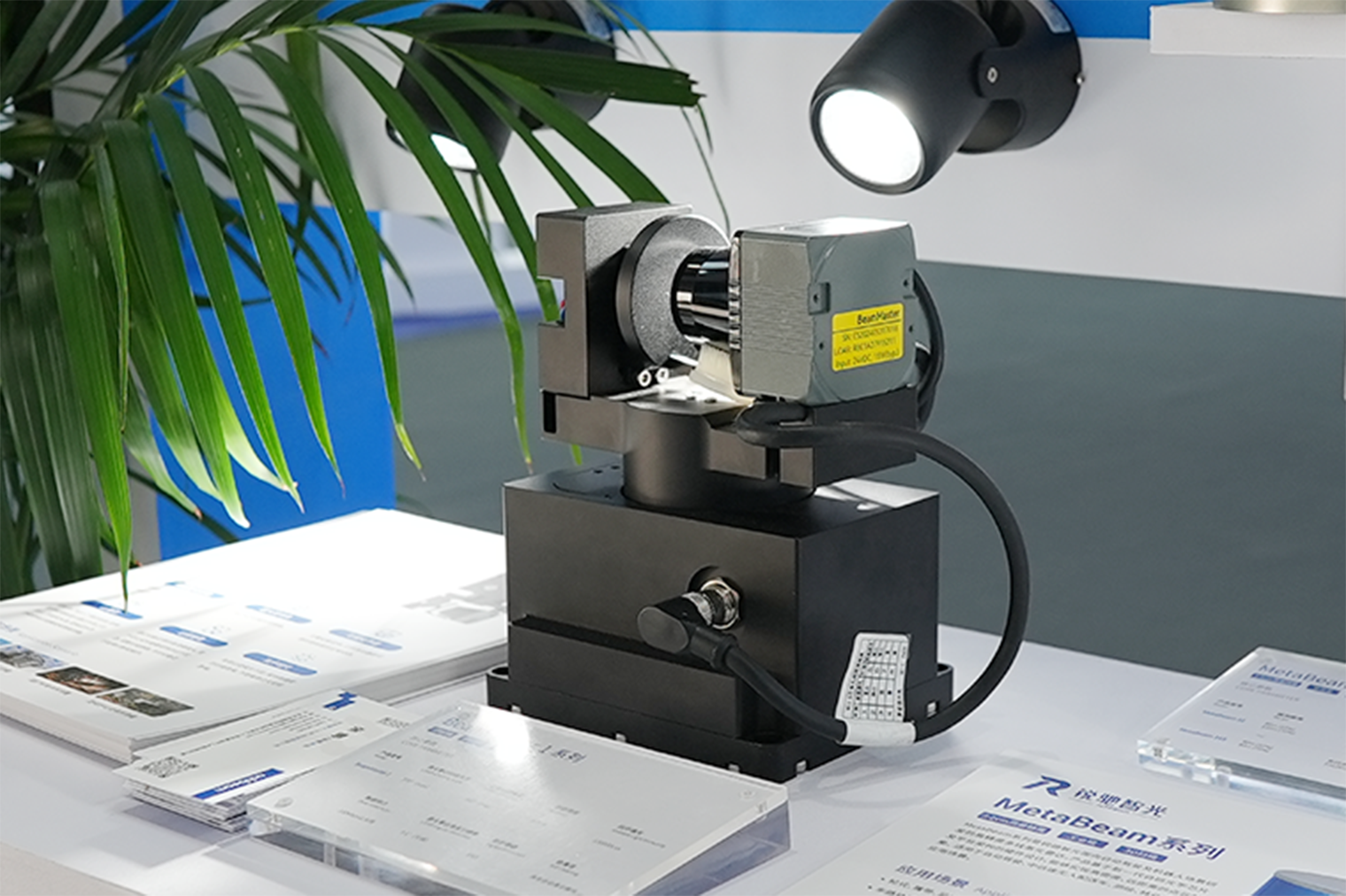

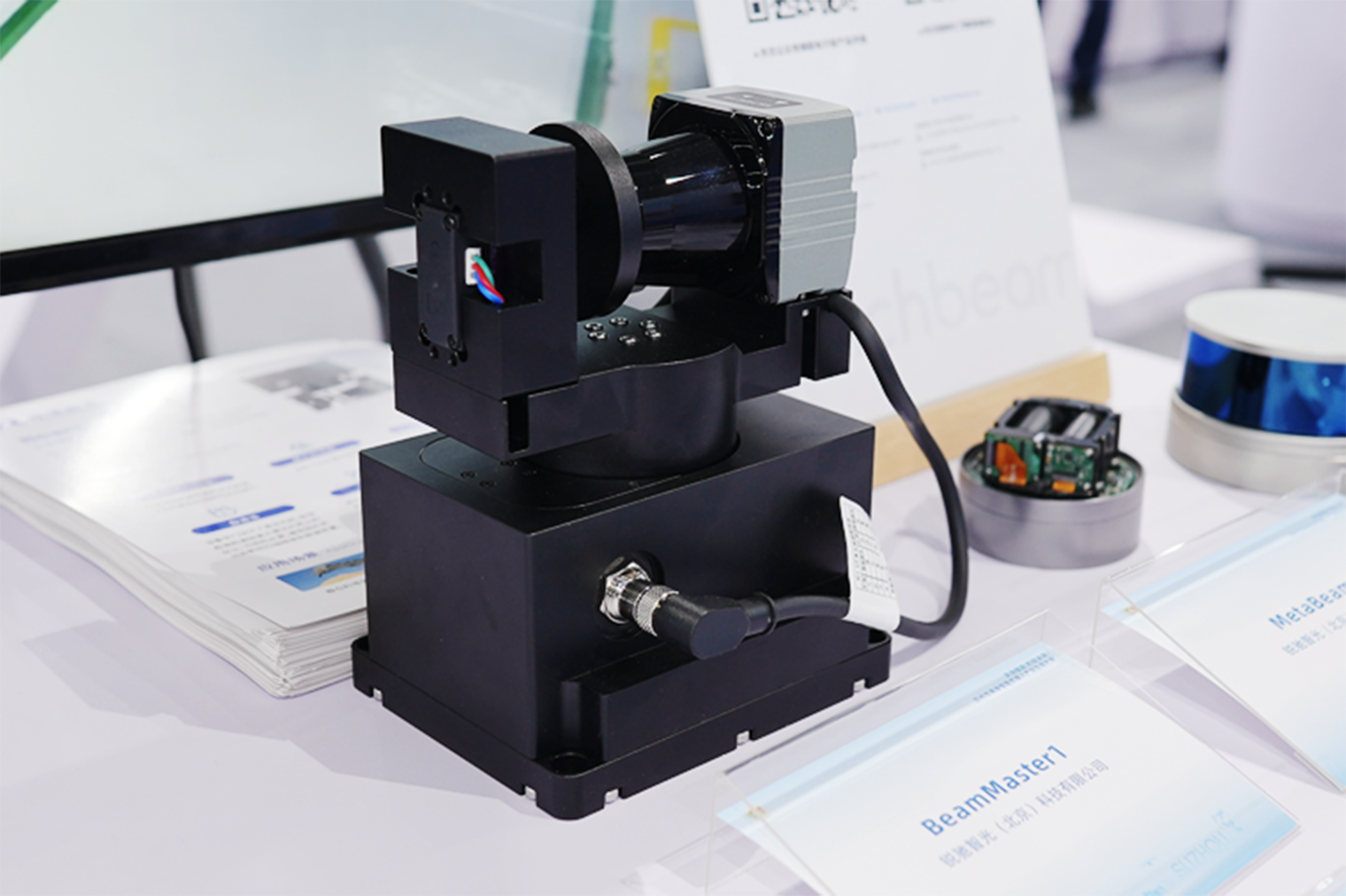

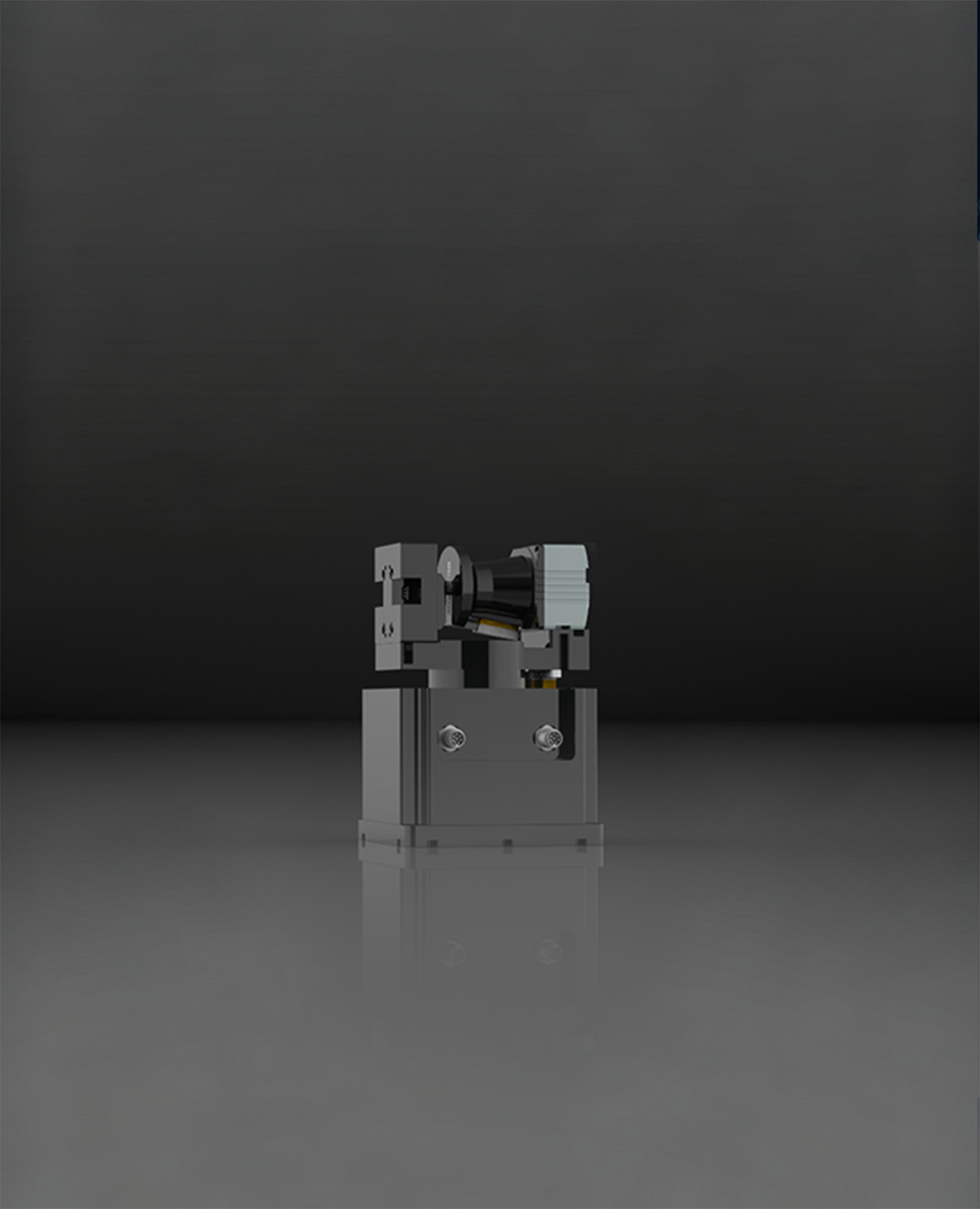

The BeamMaster1 system seamlessly integrates the LakiBeam LiDAR, a precision gimbal, and a high-definition camera. Leveraging the LiDAR’s 270° scanning range and the gimbal’s 360° rotational capability, the system facilitates advanced 3D reconstruction of target objects, ensuring comprehensive and accurate spatial mapping.
The video demonstrates the scanning process of BeamMaster1, showcasing its detailed point cloud data and a scanning speed of as fast as 34 seconds. BeamMaster1 helps you improve your inventory management.
BeamMaster1 uses proprietary optical chip technology and high-performance hardware architecture to capture ultra-high-density point cloud data to accurately reconstruct the spatial details of target objects.

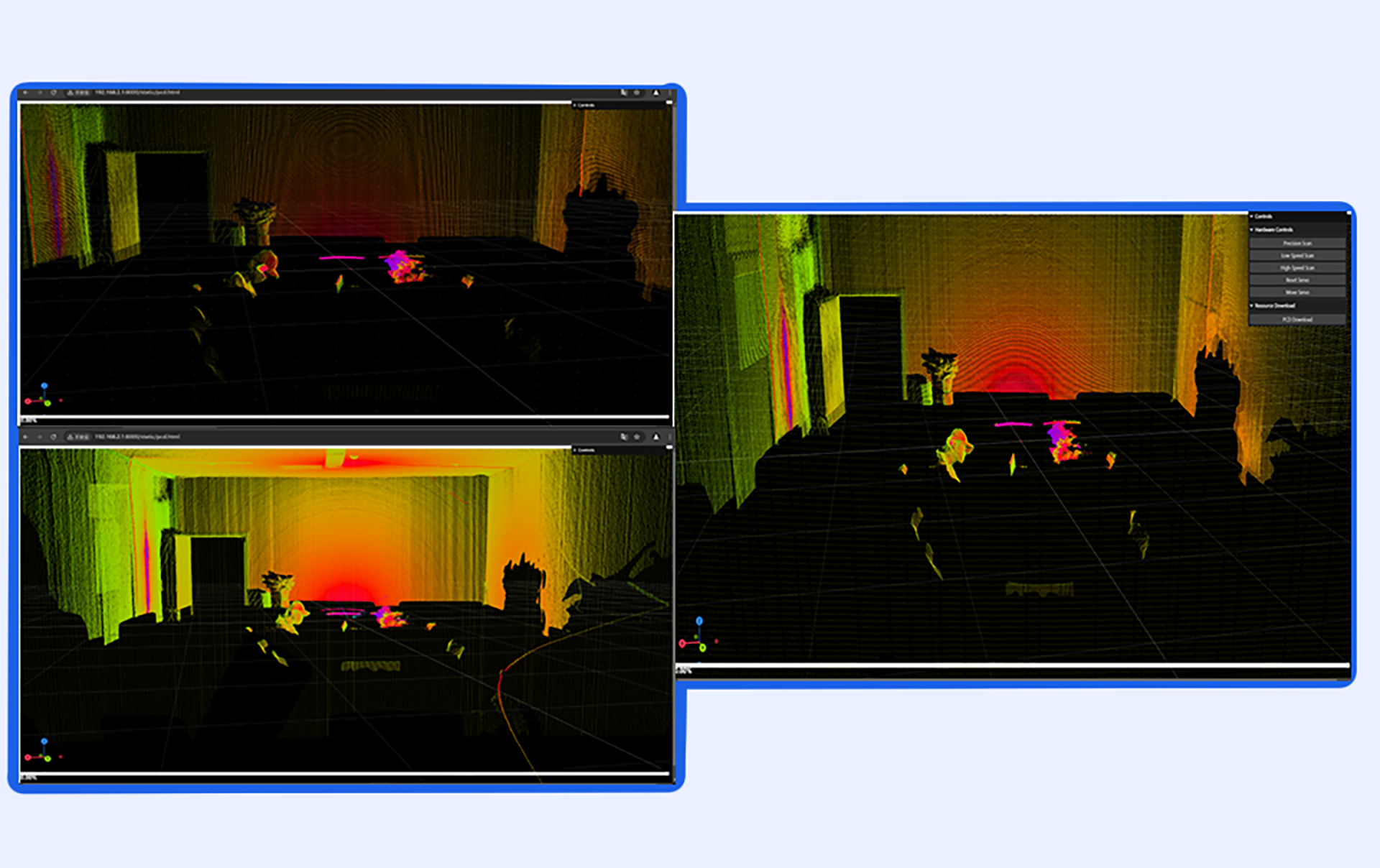

BeamMaster1 provides three scanning modes according to customer needs: fast scanning, medium scanning and slow scanning.

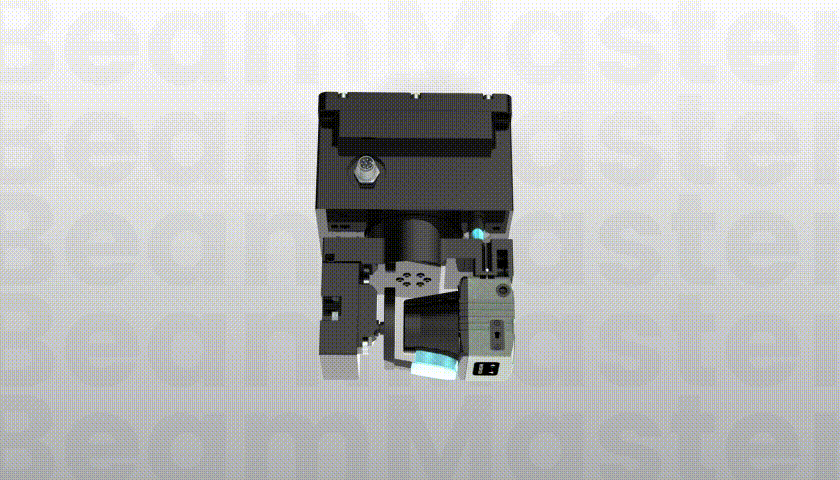

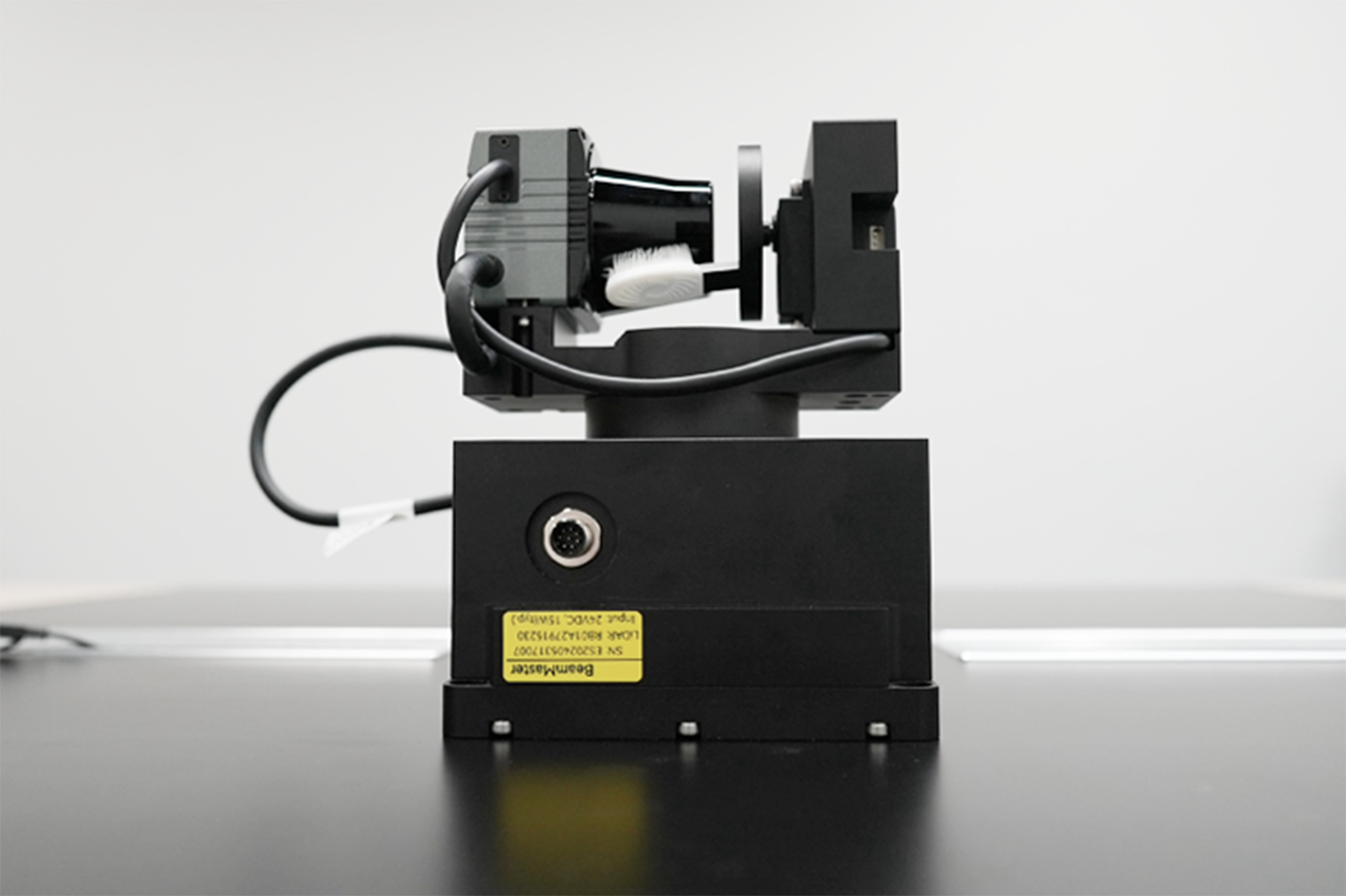

The product is equipped with a specially designed cleaning brush that removes dust, dirt, and water droplets from the LiDAR housing, preventing external contamination from affecting scanning accuracy and data quality.
BeamMaster1 are IP67 rated, rugged and low maintenance, suitable for both indoor and outdoor applications.
规格参数 |
|---|
Dimensions |
Weight |
Scanning Modes |
Fast & Low-Precision Mode |
Balanced Medium-Speed Mode |
Slow & High-Precision Mode |
Laser Wavelength |
LiDAR Scanning Angle |
Laser Safety Level |
Pan-Tilt Scanning Angle |
Range |
Data Interface |
Measurement Accuracy |
Ambient Light Resistance |
LiDAR Angular Resolution |
Pan-Tilt Resolution |
Operating Voltage |
Operating Temperature |
Storage Temperature |
Power Consumption |
Protection Rating |
Optional Camera Module |
Data Transmission |
Data Output |
BeamMaster1 | BeamMaster1H |
|---|---|
14.2cm×9cm×18cm | 14.2cm×9cm×18cm |
2.8kg | 2.89kg |
Three selectable modes | One selectable modes |
56 seconds per revolution | 34 seconds per revolution |
2 min 18 s/rev | 34 seconds per revolution |
3 min 39 s/rev | 34 seconds per revolution |
940nm | 905nm |
270°（max） | 300°（max） |
Class 1 (IEC60825-1) – Eye-Safe | Class 1 (IEC60825-1) – Eye-Safe |
360°（max） | 360°（max） |
40m @ 70% reflectivity | 50m @ 90% reflectivity |
100Mbps Ethernet | 100Mbps Ethernet |
±2cm | ±2cm |
100000Lux | 100000Lux |
0.1° (adjustable) | 0.08° (adjustable) |
0.09° (adjustable) | 0.09° (adjustable) |
24V DC (PoE optional) | 24V DC (PoE optional) |
25°C~60°℃ | 25°C~60°℃ |
-40°C~80°℃ | -40°C~80°℃ |
<15W | <15W |
IP65 | IP65 |
Optional | Optional |
100Mbps Ethernet (UDP) | 100Mbps Ethernet (UDP) |
Distance, angle, echo intensity, timestamp | Distance, angle, echo intensity, timestamp |

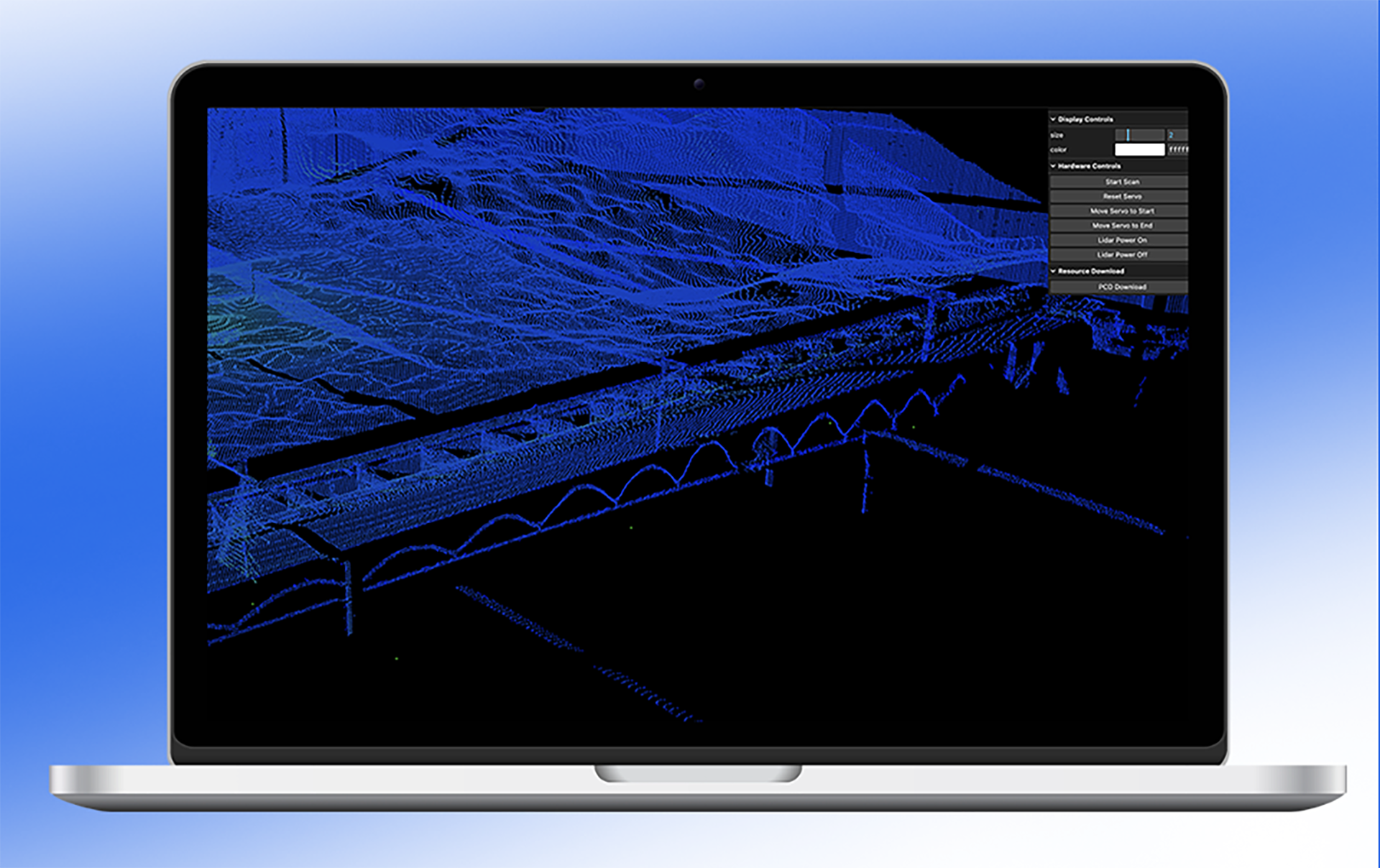

You can view the scanning results of the LiDAR in real time and obtain high-density point cloud data. You can control the dynamics of the area anytime and anywhere by opening the browser without installing software.
The BeamMaster 1 3D scanner helps businesses and universities with inventory management.
Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.
The 75-meter range laser radar sees further, wider, and with greater detail.
The BeamMaster 1 3D scanner helps businesses and universities with inventory management.
Recently, China Electronics Corporation's national-level "cross-industry" platform, CEC Internet, and Richbeam officially signed an agreement in Changsha, Hunan Province.
The 75-meter range laser radar sees further, wider, and with greater detail.
Product List

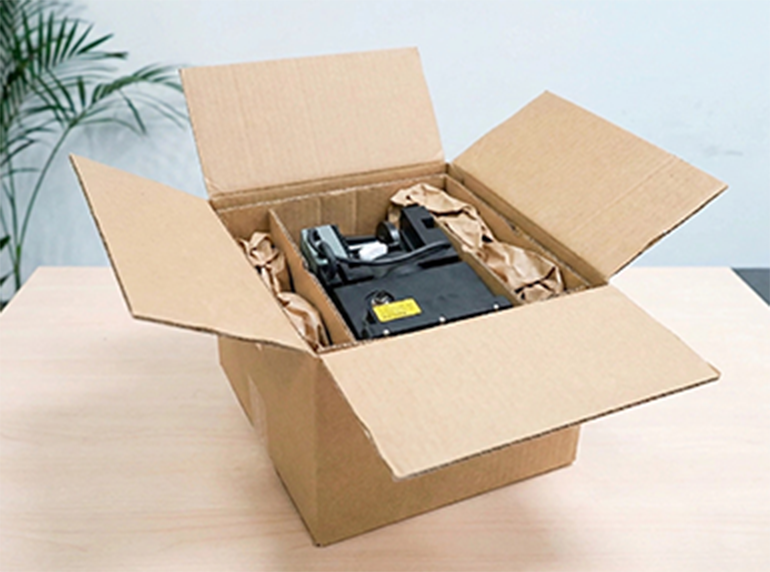

Packaging
